Loadspace Trim Panel: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
All vehicles

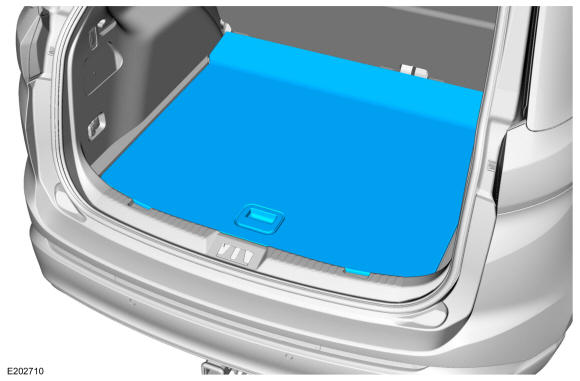

- Remove the luggage compartment floor covering.

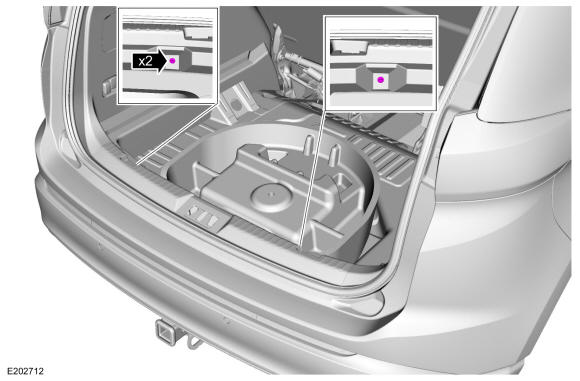

- Remove the liftgate scuffplate trim panel retainers.
Torque: 80 lb.in (9 Nm)

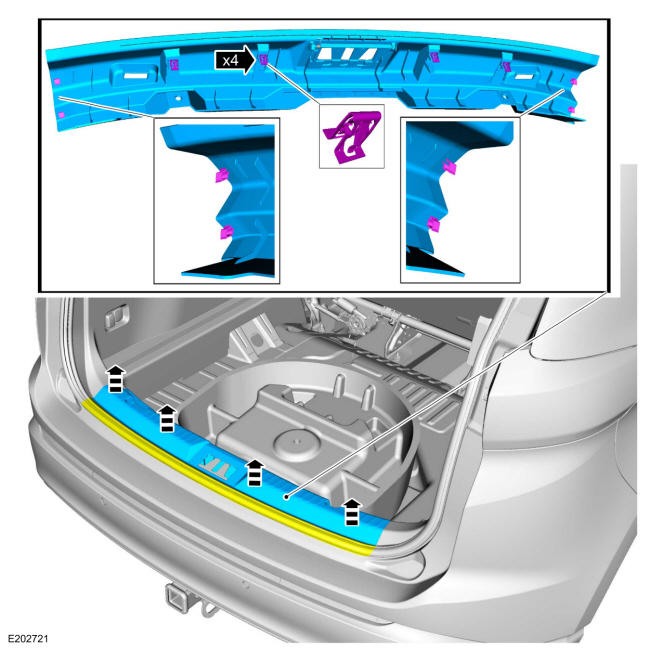

- Position aside the liftgate weatherstrip, release the clips and remove the liftgate scuffplate trim panel.

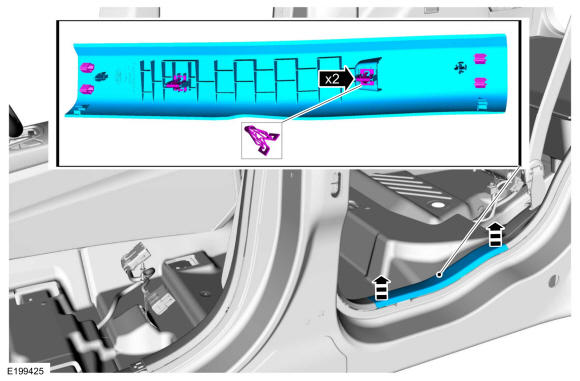

- Release the clips and remove the rear door scuffplate trim panel.
Vehicles With: Inflatable Safety Belts
NOTE: Follow the unique instructions or graphics for these steps in installation. - Open the safety belt tongue cover.

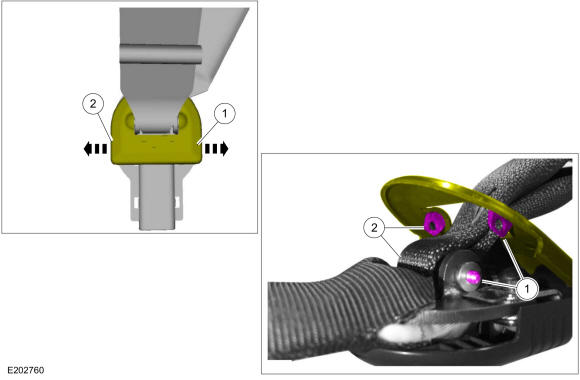

- Push the safety belt tongue lower cover to one side, lift and disengage that side of the cover.
- Push the safety belt tongue lower cover to one side, lift and disengage that side of the cover and open the cover.
- Disassemble the lap belt from the safety belt tongue.

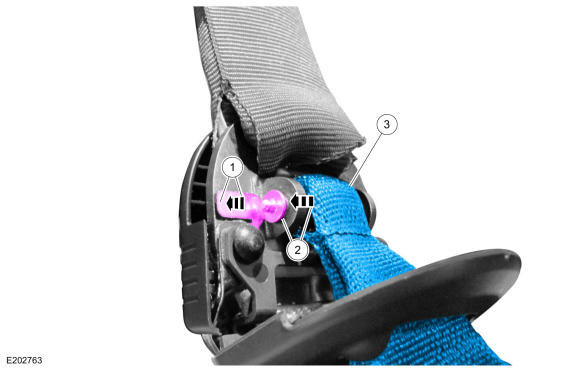

- Push down on the lap belt and spring clip.
- Remove the pin.
- Pull the lap belt out of the safety belt tongue cover.
All vehicles

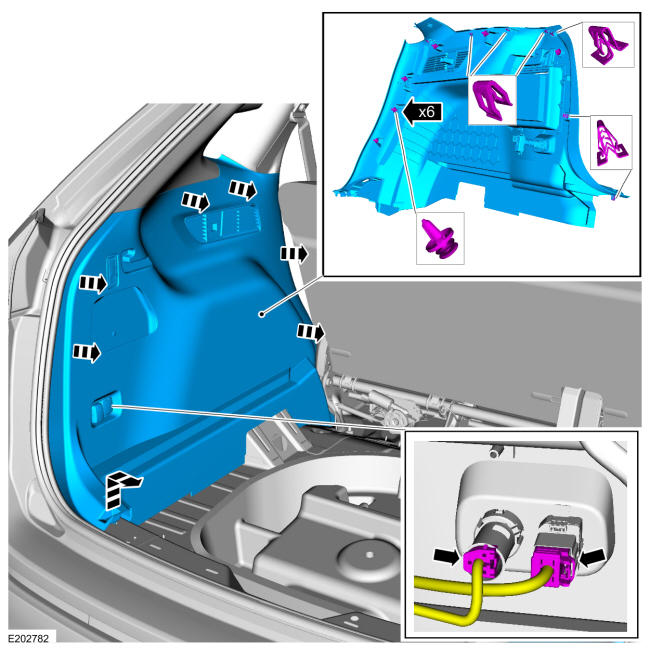

- Release the clips, disconnect the electrical connectors and remove the loadspace trim panel.
