Loadspace Trim Panel: Installation
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
Vehicles With: Inflatable Safety Belts
NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants. -
-

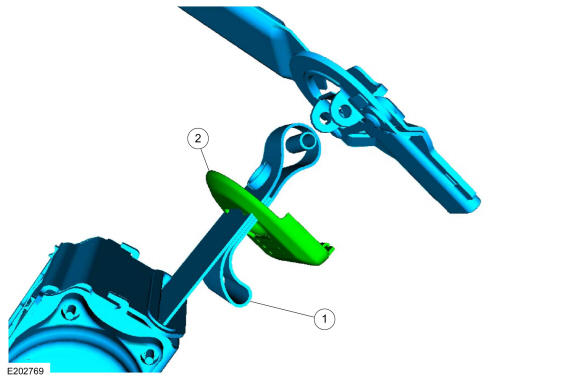

NOTE: The safety belt web secondary loop must be positioned down to prevent twisting of the safety belt.
Position the safety belt web secondary loop in the down position.

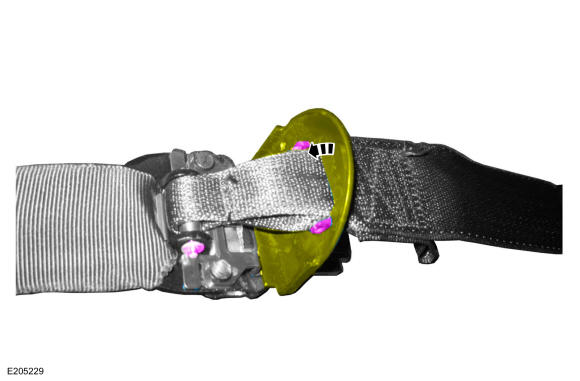

- Feed the lap belt through the safety belt tongue cover.
-

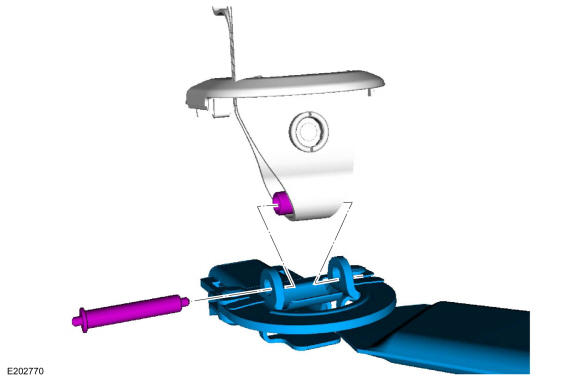

- Install the pin through the safety belt tongue and the lap belt bushing.
-
NOTE: Make sure the pin is pushed all the way in and the spring clip is allowed to ride up on the shoulder of the pin.
Position the spring clip up on the shoulder of the pin.
-
NOTE: If the pin is not pushed all the way in, the lower safety belt tongue cover will not close correctly.
Close the safety belt tongue cover.
