Loadspace Trim Panel Cargo Net Hook: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.
NOTE:
Removal steps in this procedure may contain installation details.

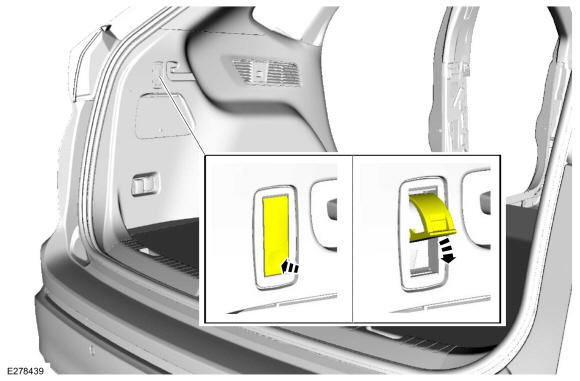

- Open the loadspace trim panel cargo net hook.

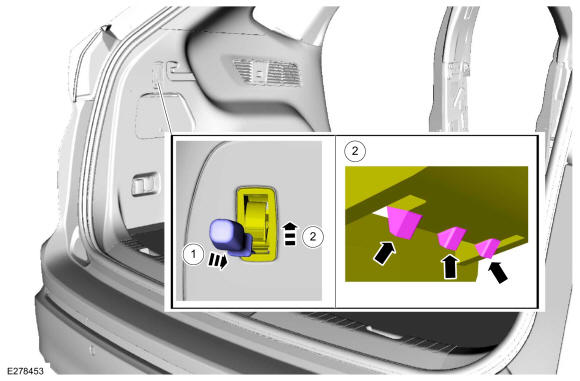

- Release the loadspace trim panel cargo net hook lower tabs.
- Inset the screwdriver in the lower portion of the loadspace trim panel cargo net hook. Use the General Equipment: Flat Headed Screw Driver
- Pry the loadspace trim panel cargo net hook upward.
-
NOTE: During installation an audible click will be heard when the lower tabs are fully seated in the loadspace trim panel.

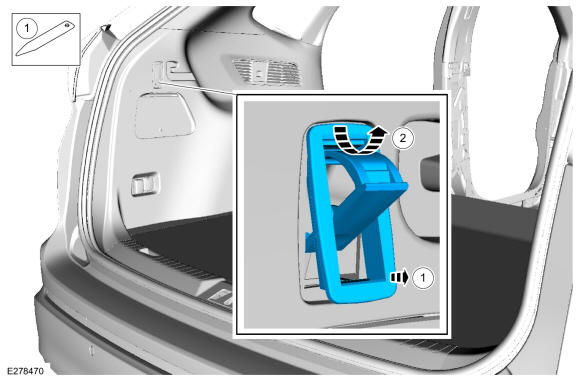

Remove the loadspace trim panel cargo net hook.
- Pry outward on the lower portion of the loadspace trim panel cargo net hook. Use the General Equipment: Interior Trim Remover
- Rotate loadspace trim panel cargo net hook downward and outward.
