Liftgate Trim Panel: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

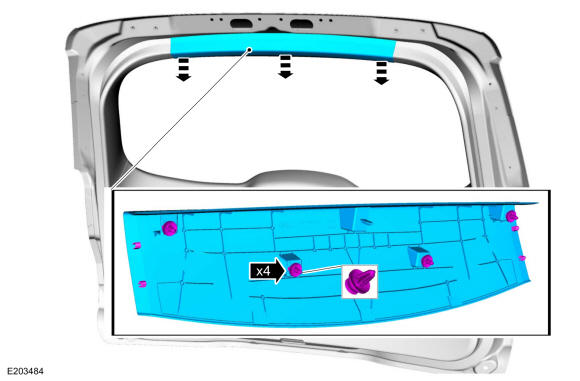

- Release the clips and remove the liftgate upper center trim panel.
- Release the clips and remove the liftgate grab handle cover.
- Remove the liftgate grab handle screws.

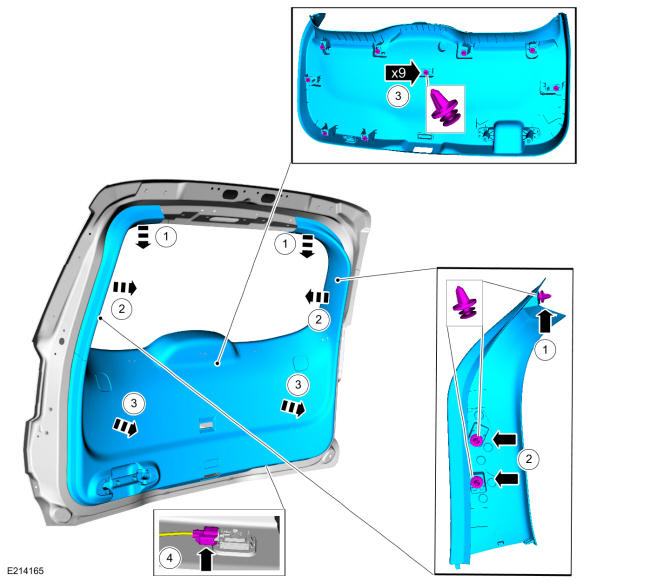

- Remove the lower and side liftgate trim panels as an assembly.
- On both sides. Release side liftgate trim panel upper retainer.
- On both sides. Release the side liftgate trim panel middle retainers.
- Release the retainers and remove the side and lower liftgate trim panels as an assembly.
- If equipped. Disconnect the power liftgate switch electrical connector.

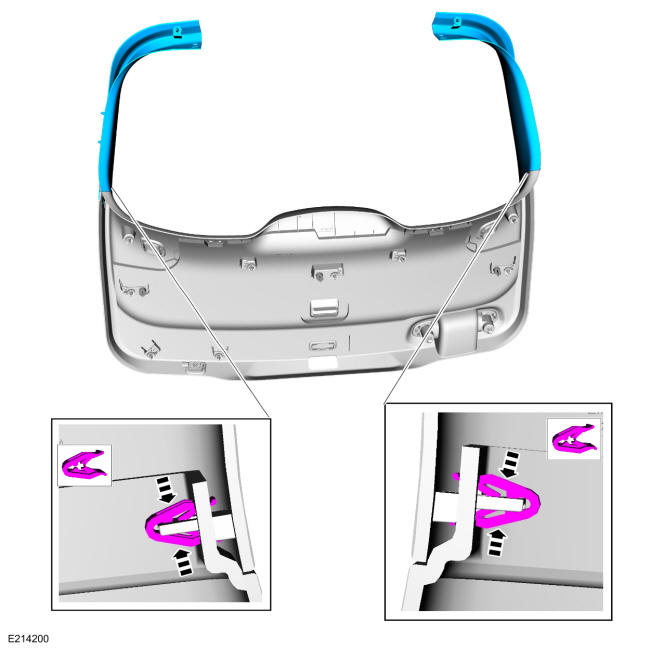

- Release the clips and remove the liftgate side trim panels.
