Liftgate Trim Panel: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

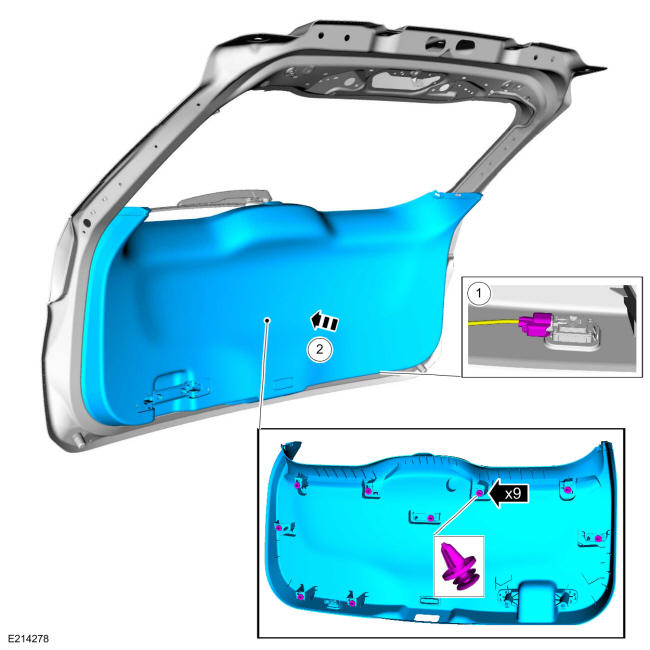

  1. Install the liftgate lower trim panel.

    1. If equipped. Connect the power liftgate switch electrical connector.
    2. Install the lower trim panel.

    GFD283090Courtesy of FORD MOTOR COMPANY
  2. Install the liftgate grab handle screws.
    GFD283087Courtesy of FORD MOTOR COMPANY

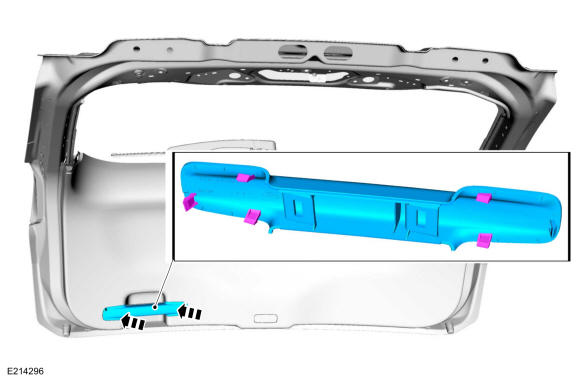

  3. Install the liftgate grab handle cover.
    GFD283091Courtesy of FORD MOTOR COMPANY

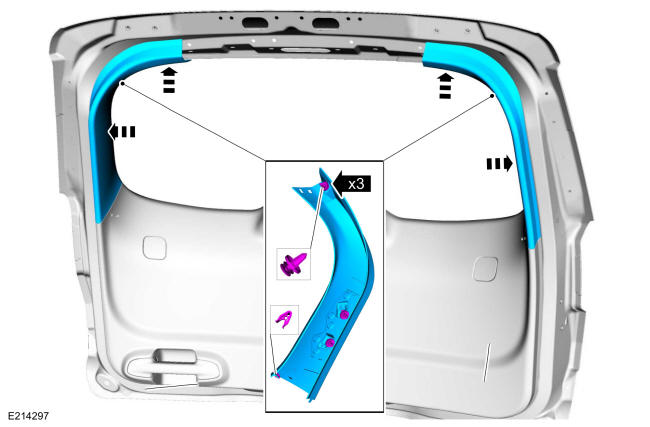

  4. Install the RH and LH liftgate upper side trim panels.
    GFD283092Courtesy of FORD MOTOR COMPANY

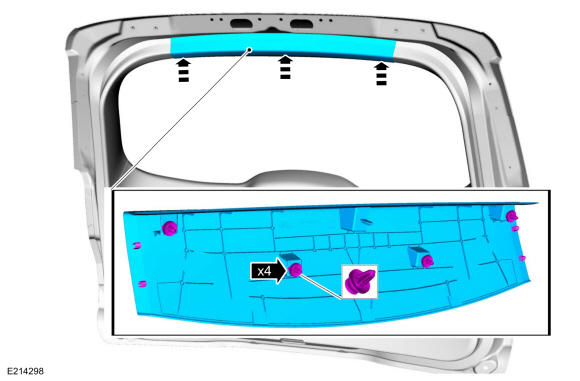

  5. Install the liftgate upper center trim panel.
GFD283093Courtesy of FORD MOTOR COMPANY
