Removal And Installation: Headliner: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- Remove the following items:
- On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
- On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel .
- On both sides, remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
- If equipped.
- Disconnect the headliner RH wire harness.
- Release the clips and position the RH wire harness aside.
- Position aside the headliner LH wire harness.
- Disconnect the LH wire harness.
- Release the clips and position the LH wire harness aside.
- If equipped. Disconnect the mirror electrical connector.
Vehicles with rain sensing wipers
- Release the clips and remove the rear view mirror covers.
- Disconnect the mirror and the rain sensor electrical connectors.
All vehicles
-
NOTE: RH side shown, LH side similar.
On both sides. Remove both sun visors.
- Remove the sun visor retainer cover.
- Remove the sun visor retainer.
- Remove the sun visor.
- If equipped. Disconnect the sun visor electrical connector.
-
NOTE: RH side shown, LH side similar.
On both sides. Remove the retainer and the sun visor clip.
-
NOTE: RH side shown, LH side similar.
On both sides. Remove the front grab handles.
- Remove the bolt covers.
- Remove the retainers and the grab handle.
-
NOTE: RH side shown, LH side similar.
On both sides. Remove the rear grab handles.
- Remove the bolt covers.
- Remove the retainers and the rear grab handle.

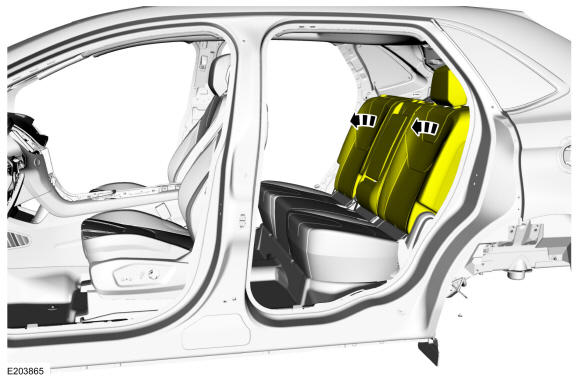

- Position the rear seat backrests down.

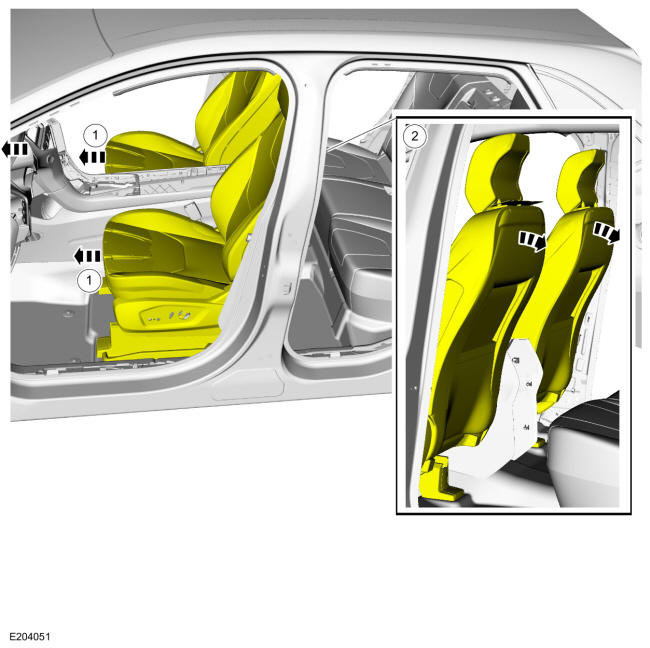

- Position both front seats.
- Move both front seats to the full forward position.
- Fully recline both front seats.
Vehicles without roof opening panel

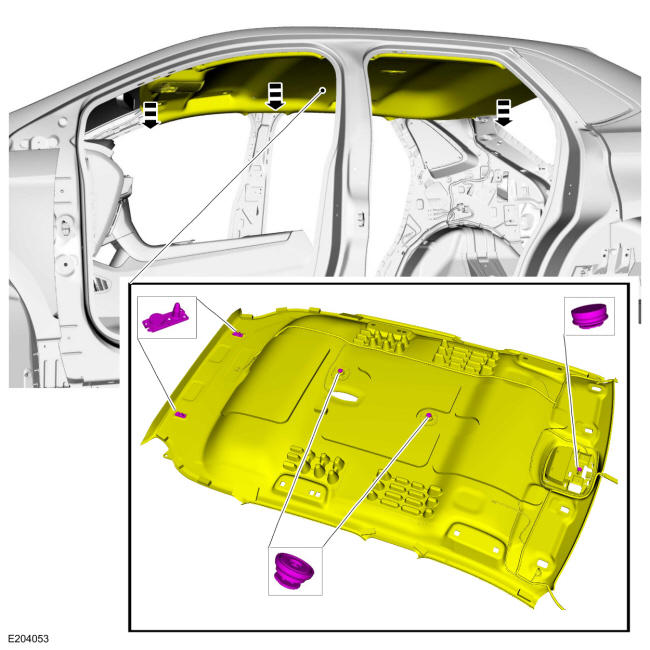

- Release the magnets and lower the headliner.
Vehicles With: Roof Opening Panel
- Release the magnets and lower the headliner.
All vehicles

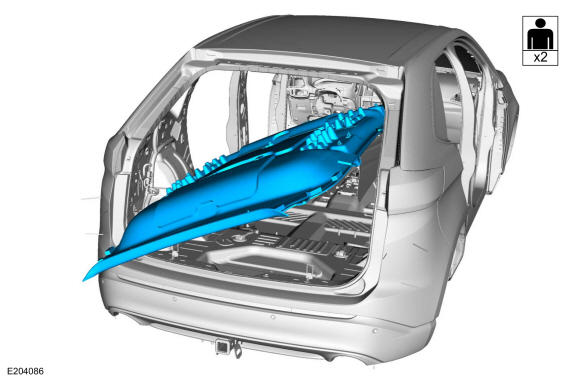

- Remove the headliner.
