C-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the loadspace trim panel. Refer to: Loadspace Trim Panel .

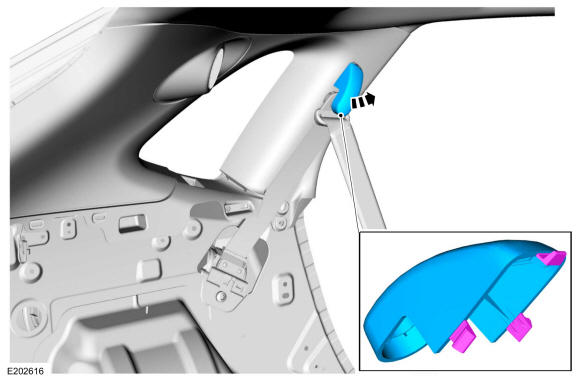

Release the clips and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY

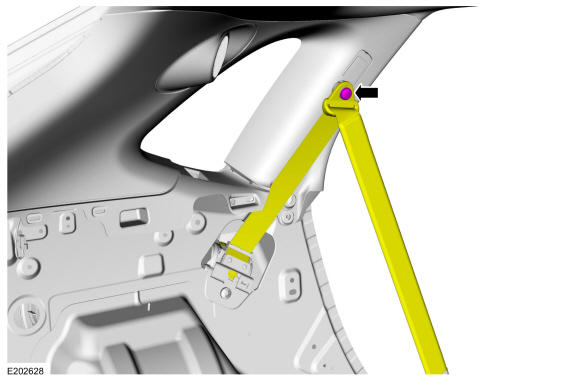

Remove the D-ring bolt and position the safety belt aside.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

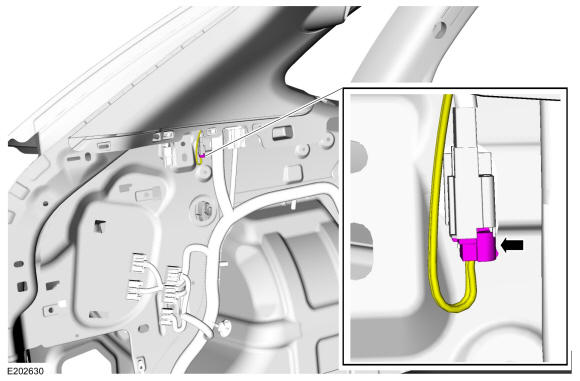

If equipped. Disconnect the speaker electrical connector.

Courtesy of FORD MOTOR COMPANY

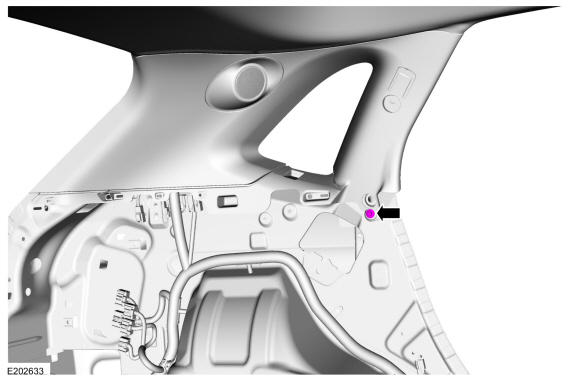

Remove the C-pillar trim panel bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

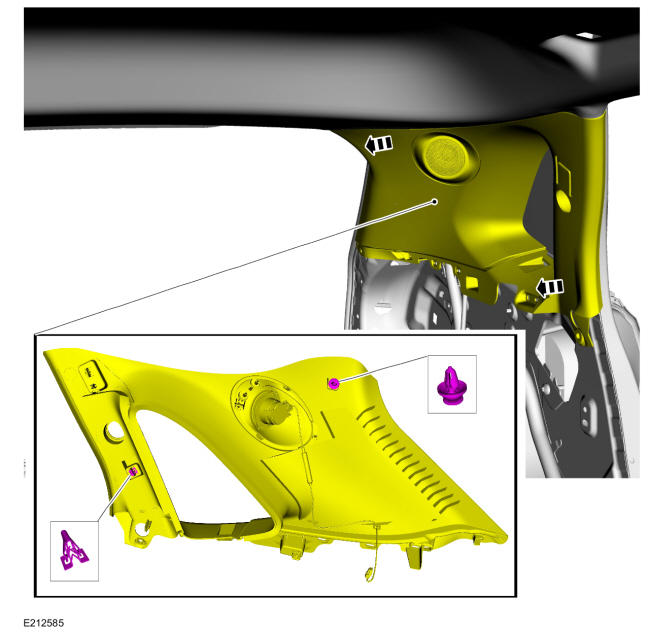

Release the front lower clip and the upper rear pin-type retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned downward to allow the upper clip to release correctly. Failure to follow this direction may cause damage to the trim panel.

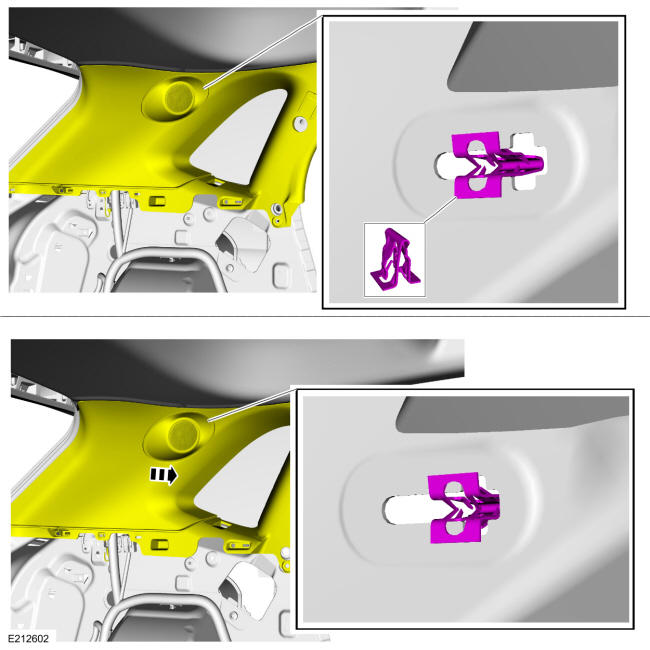

Slide the C-pillar trim panel down, aligning the clip to the slot in the sheet metal.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned forward to allow the upper clip to release correctly. Failure to follow this direction may cause damage to the trim panel.

NOTE: If clip remains attached to the body when disconnected, a new trim panel must be installed.

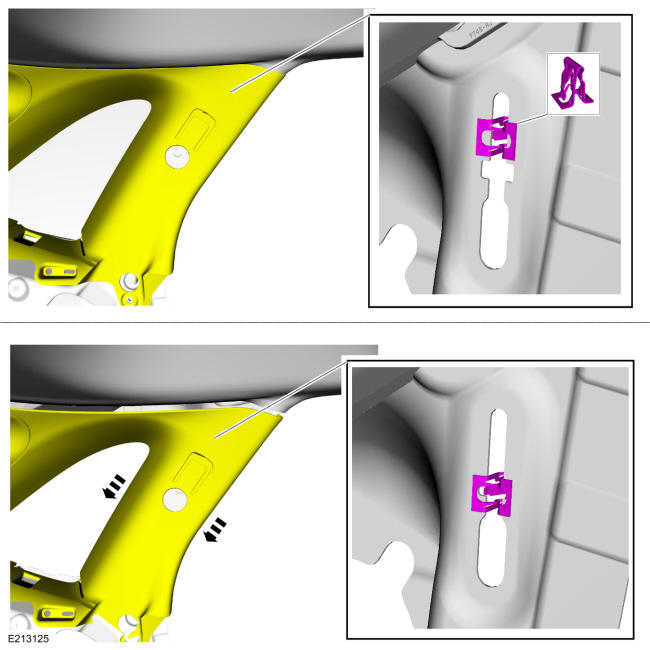

Slide the C-pillar trim panel forward, aligning the clip to the slot in the sheet metal.

Courtesy of FORD MOTOR COMPANY

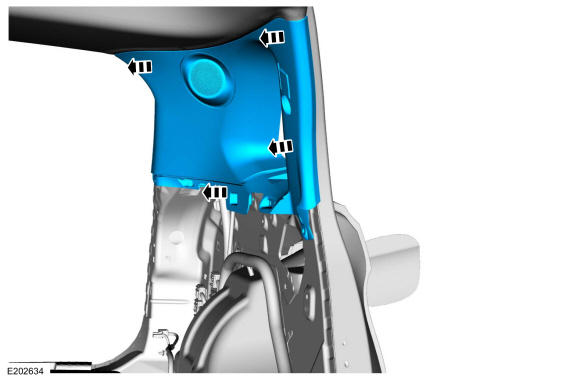

Remove the C-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
