B-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Upper and Lower

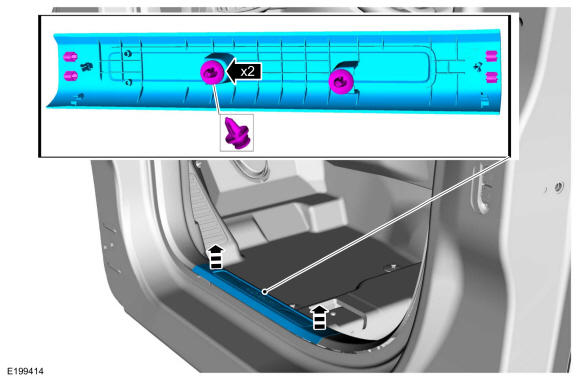

Release the clips and remove the front door scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the rear door scuffplate trim panel.

Courtesy of FORD MOTOR COMPANY

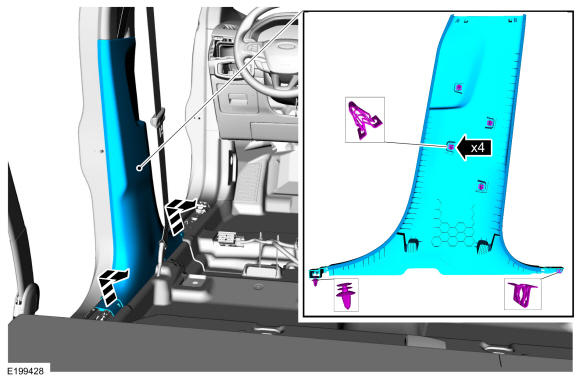

Release the clips and remove the lower B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY

Upper

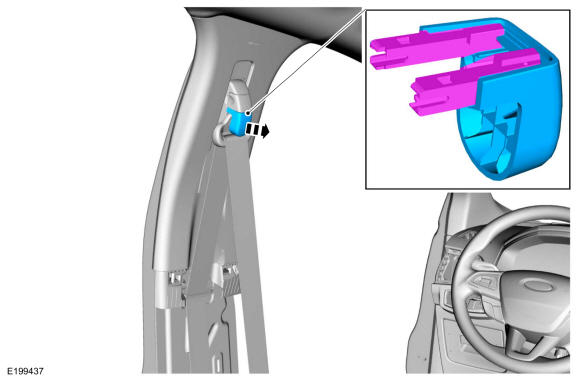

Release the clips and remove the D-ring bolt cover.

Courtesy of FORD MOTOR COMPANY

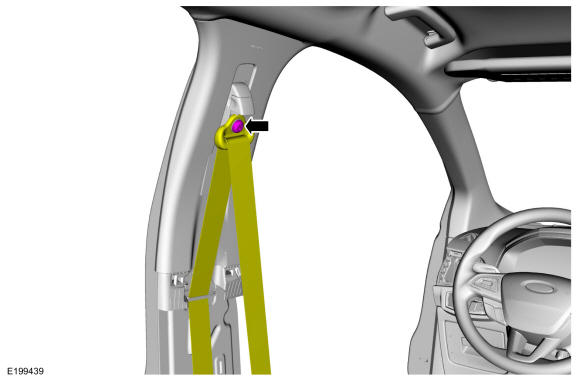

Remove the D-ring bolt and position aside the safety belt.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

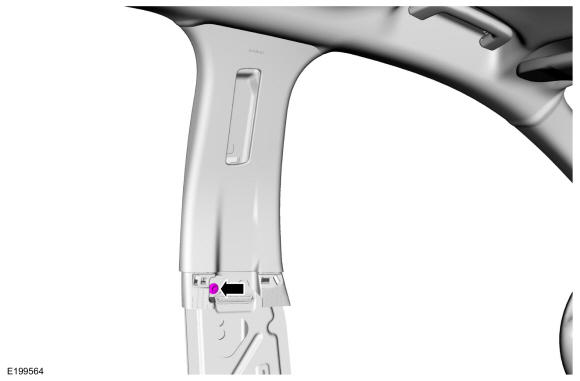

Remove the lower B-pillar trim panel retainer.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

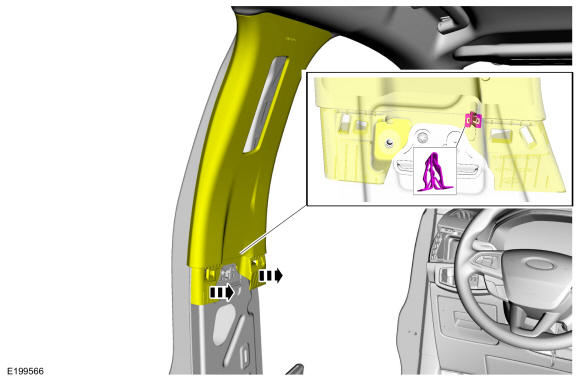

Release the upper B-pillar trim panel lower clip.

Courtesy of FORD MOTOR COMPANY
NOTE: The trim panel must be positioned downward to allow the upper clips to release correctly. Failure to follow this direction may cause damage to the trim panel.

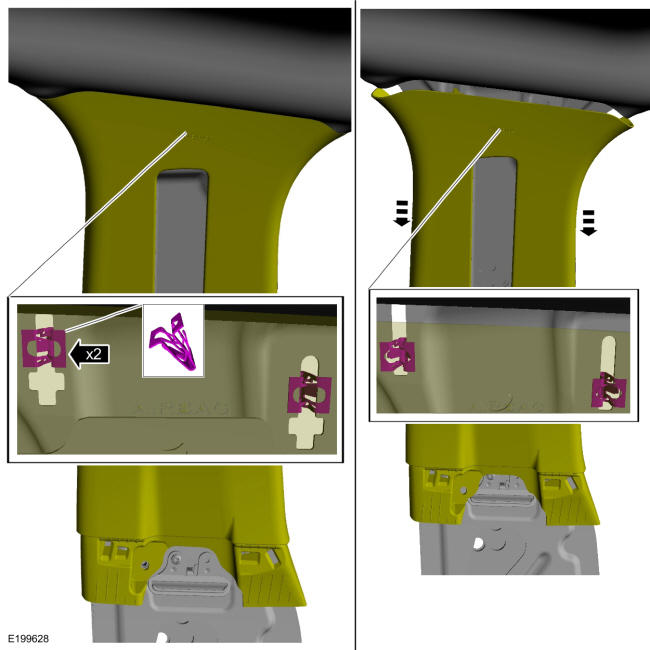

Slide the upper B-pillar trim panel down, aligning the clips to the slots in the sheet metal.

Courtesy of FORD MOTOR COMPANY

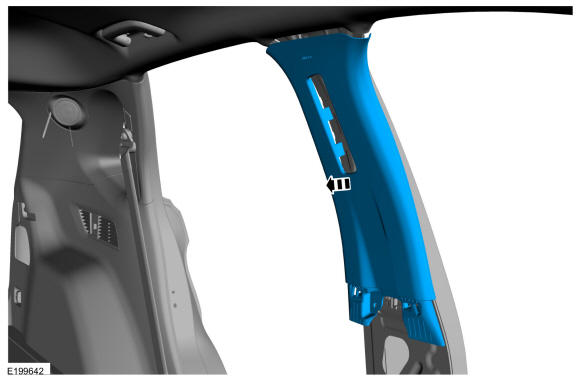

Remove the upper B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
