A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

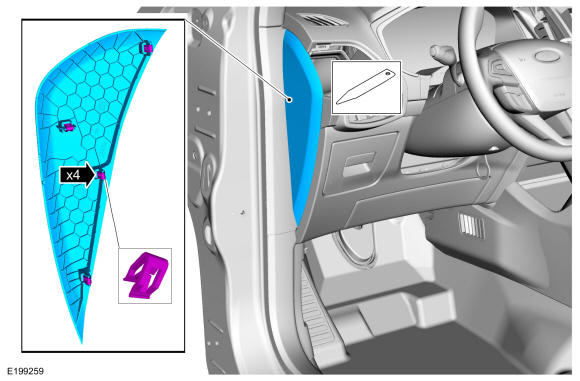

Release the clips and remove the side trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

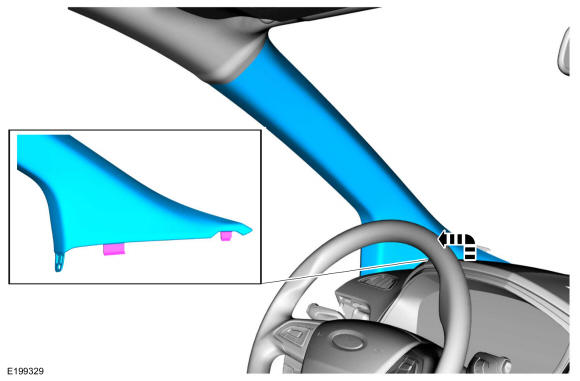

Release the clips and remove the cowl panel upper trim panel.

Courtesy of FORD MOTOR COMPANY

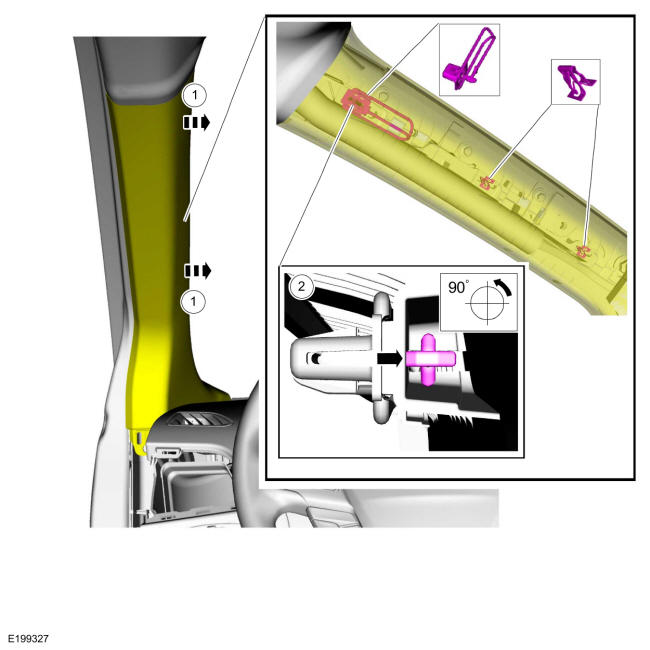

1. Release the clips.
2. Rotate the tether clip end 90 degrees and disconnect it from the A-pillar trim panel.
Courtesy of FORD MOTOR COMPANY

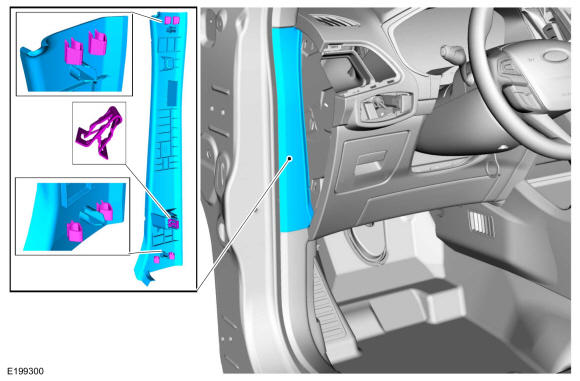

Release the clips and remove the A-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
