Rear Gate Trunk Module (RGTM): Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current RGTM installed. If the current RGTM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the RGTM following the on-screen instructions.
- If equipped, remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module .
- Remove the load space trim panel. Refer to: Loadspace Trim Panel .

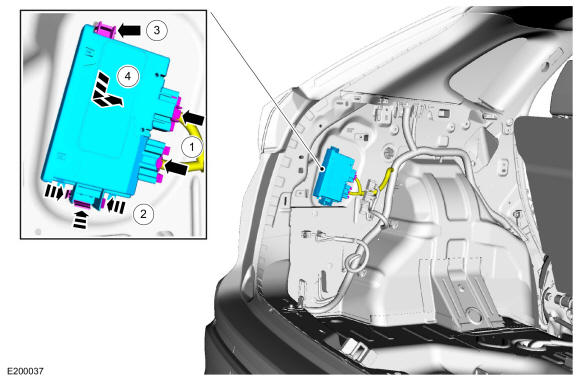

- Remove the RGTM.
- Disconnect the electrical connectors.
- Release the retaining clips.
- Release the tab.
- Remove the RGTM.
