Rear Door Check Arm: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

Open the door.

Courtesy of FORD MOTOR COMPANY
Remove the rear check arm bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
NOTE: Door removed from vehicle for clarity.

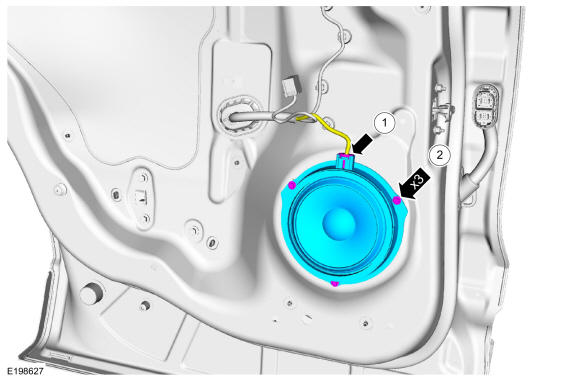

Remove the rear door speaker.
1. Disconnect the electrical connector.
2. Remove the bolts and the speaker.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Door removed from vehicle for clarity.

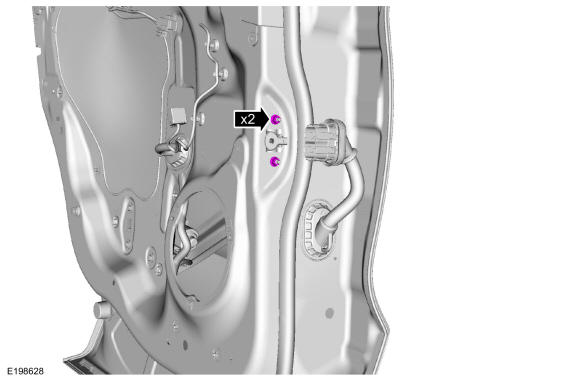

Remove the rear door check arm nuts.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Door removed from vehicle for clarity.

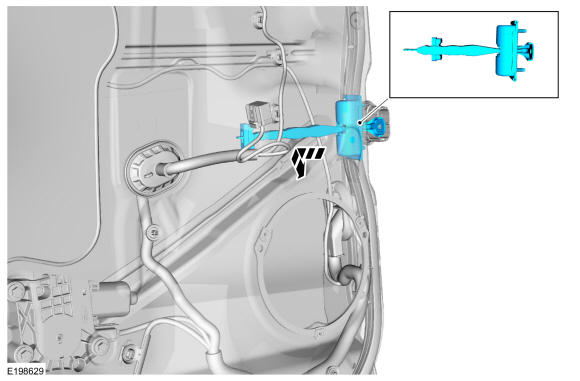

Remove the rear door check arm assembly.
