Liftgate Anti-Pinch Switch: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown, RH side similar.

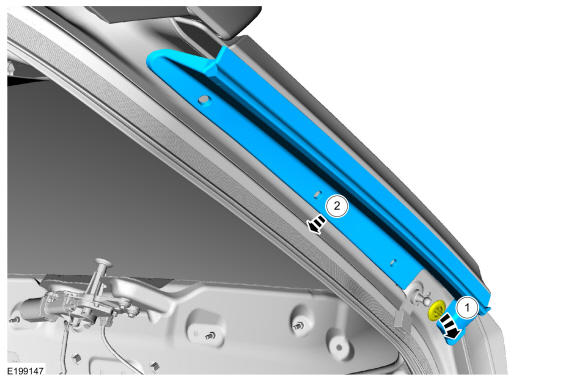

- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

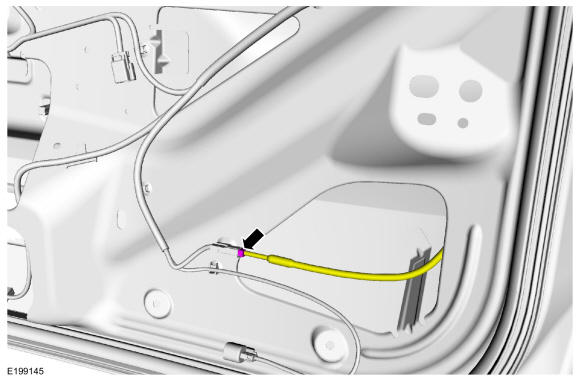

- Disconnect the liftgate anti-pinch switch electrical connector.
- Remove the retainers.
- Remove the liftgate anti-pinch switch.
- Remove the rubber grommet and route the electrical connector out of the liftgate.
- Remove the liftgate anti-pinch switch.
