Hands-Free Liftgate Actuation Upper Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center section of the rear bumper cover.

    1. Remove the retainers.
    2. Release the tabs and remove the center section of the rear bumper cover.

    GFD283015Courtesy of FORD MOTOR COMPANY

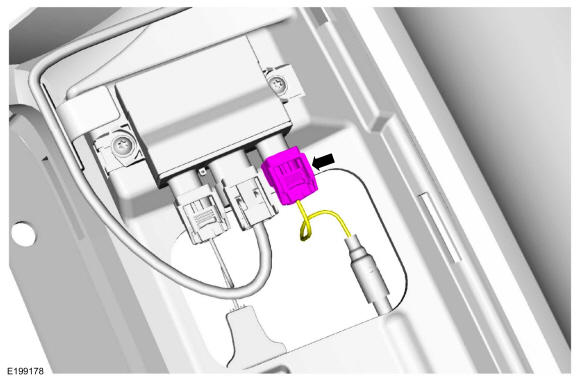

  2. Disconnect the hands-free liftgate actuation upper sensor electrical connector.
    GFD283020Courtesy of FORD MOTOR COMPANY

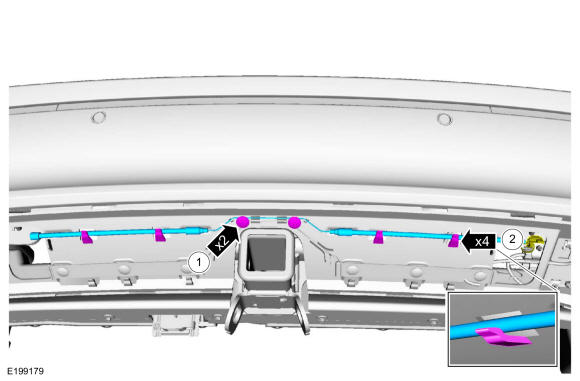

  3. Remove the hands-free liftgate actuation upper sensor.

    1. Remove the retainers.
    2. Release the tabs and remove the hands-free liftgate actuation upper sensor.

GFD283021Courtesy of FORD MOTOR COMPANY
