Hands-Free Liftgate Actuation Module: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

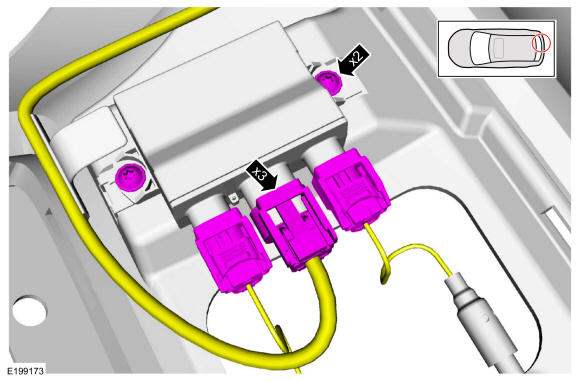

- Disconnect the hands-free liftgate actuation module electrical connectors and remove the screws.
Torque
: 25 lb.in (2.8 Nm)
 Courtesy of FORD MOTOR COMPANY
|

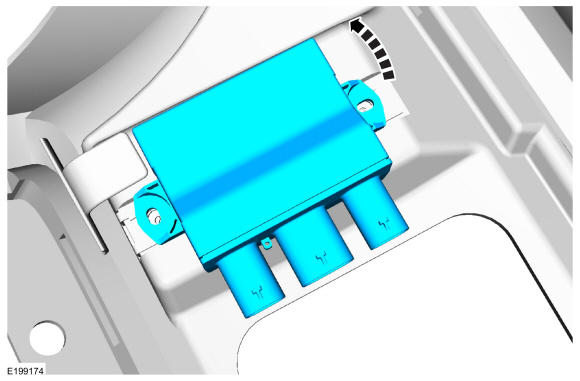

- Remove the hands-free liftgate actuation module.
 Courtesy of FORD MOTOR COMPANY
|
