Fuel Filler Door Spring: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

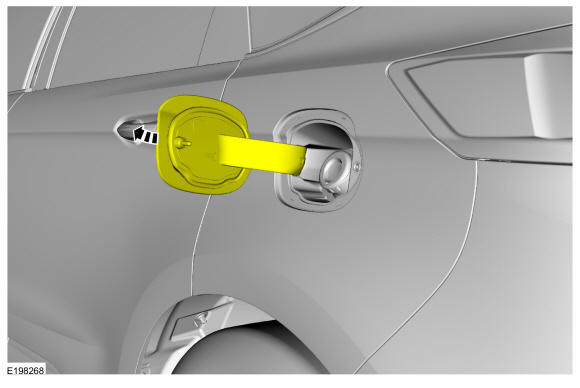

  1. Open the fuel filler door.
    GFD283007Courtesy of FORD MOTOR COMPANY

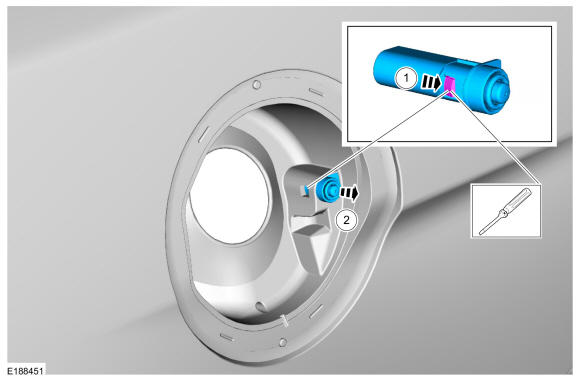

  2. Using a screwdriver, release the tab and remove the fuel filler door spring.
GFD283014Courtesy of FORD MOTOR COMPANY
