Front Door: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Open the door.

Courtesy of FORD MOTOR COMPANY

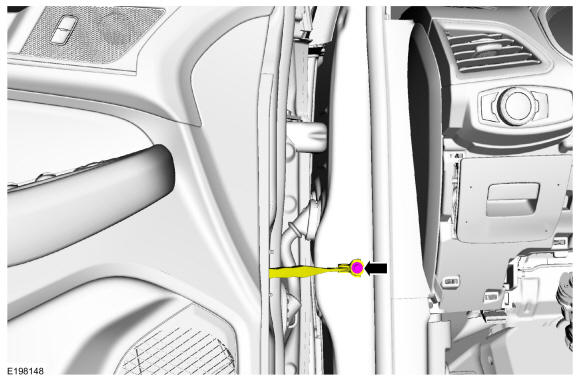

Remove the check arm bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

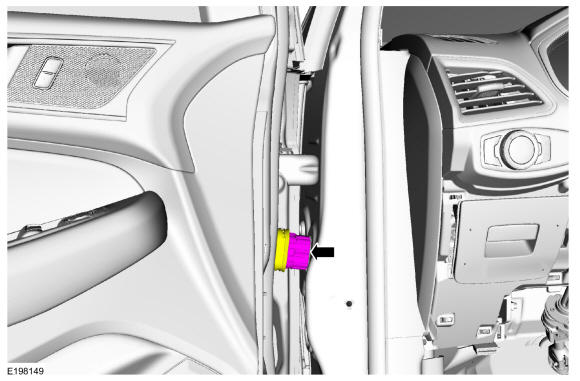

Disconnect the front door electrical connector.

Courtesy of FORD MOTOR COMPANY

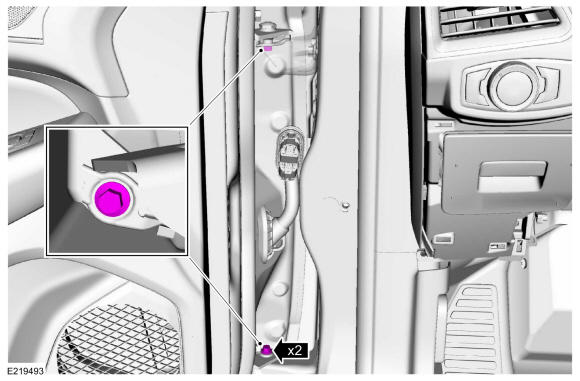

Remove the door hinge pivot bolts. Use the General Equipment: Door Lift
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

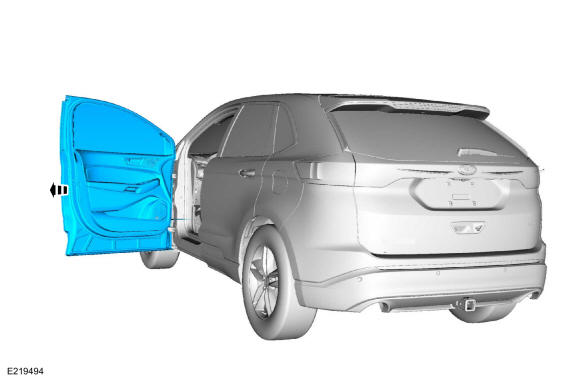

Remove the door. Use the General Equipment: Door Lift

Courtesy of FORD MOTOR COMPANY
