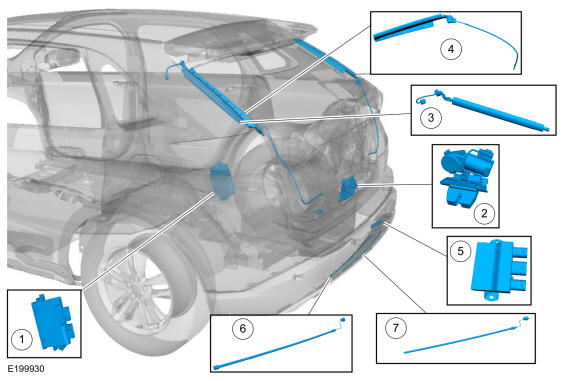

Body Closures - Component Location
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RGTM |
| 2 |
Power liftgate latch |
| 3 |
Power liftgate motor |
| 4 |
Liftgate anti-pinch switches |
| 5 |
Hands-free liftgate actuation module (if equipped) |
| 6 |
Hands-free liftgate actuation lower sensor (if equipped) |
| 7 |
Hands-free liftgate actuation upper sensor (if equipped) |
