Removal And Installation: Hood: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

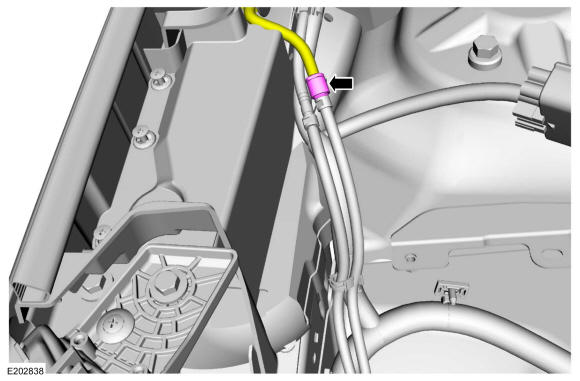

- Detach the windshield washer hose coupling.

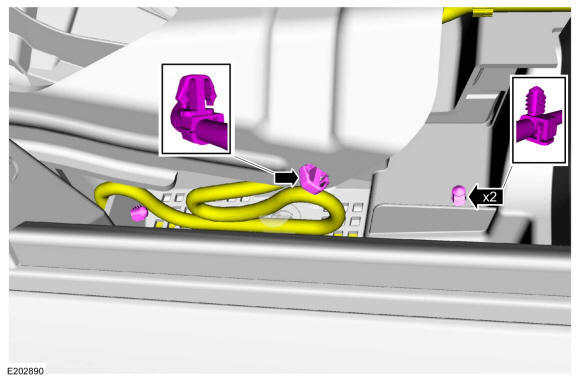

- Detach the windshield washer hose retainers from the RH side hood hinge and cowl panel.
-
NOTE: LH side shown, RH side similar.

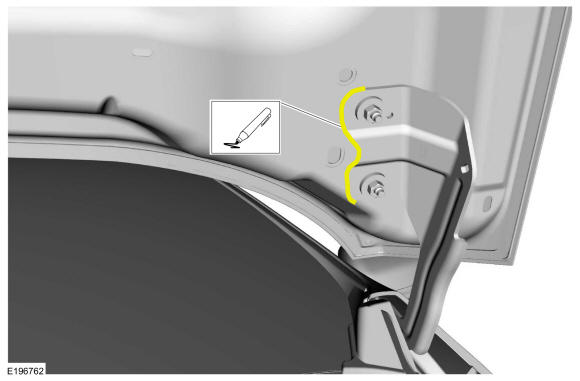

Index-mark the hood hinge location to aid in hood installation.
-
NOTE: An assistant is necessary to support the hood.

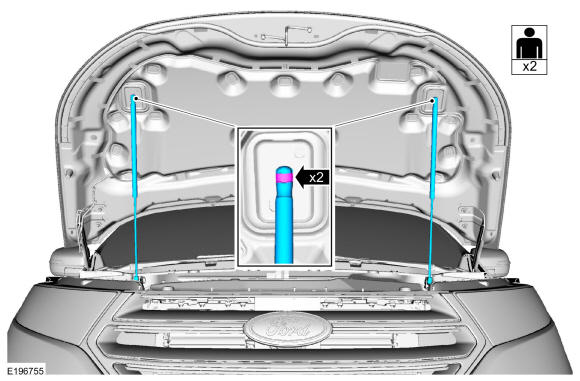

Remove the clips and the hood struts.
-
NOTE: An assistant is necessary for the support and removal of the hood.
Remove the nuts and the hood.
Torque
: 18 lb.ft (25 Nm)
-
NOTE: This step is only necessary when installing a new component.
Remove the retainers and the hood insulation.
-
NOTE: This step is only necessary when installing a new component.

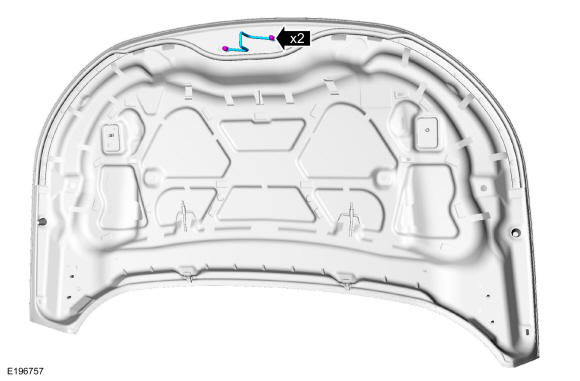

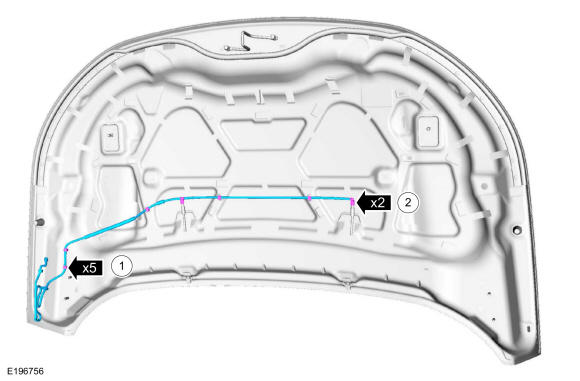

Detach the retainers, couplings and remove the windshield washer hose.
-
NOTE: This step is only necessary when installing a new component.
Remove the striker latch to hood nuts and the striker latch.
Torque
: 71 lb.in (8 Nm)
-
NOTE: This step is only necessary when installing a new component.
Remove the hood bump stop rubbers.
-
NOTE: This step is only necessary when installing a new component.
Remove the retainers and the hood pad assembly.
