Removal And Installation: Fender: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the fender splash shield. Refer to: Fender Splash Shield .

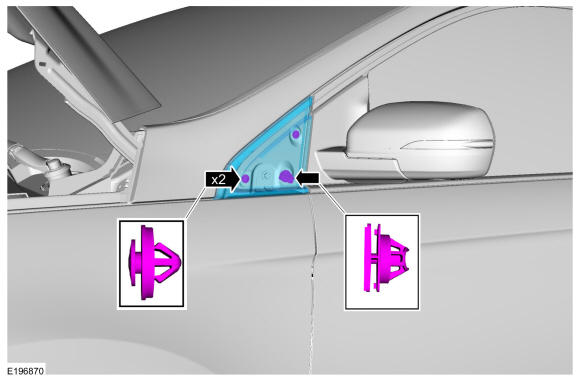

Remove the retainers and the door frame moulding.

Courtesy of FORD MOTOR COMPANY

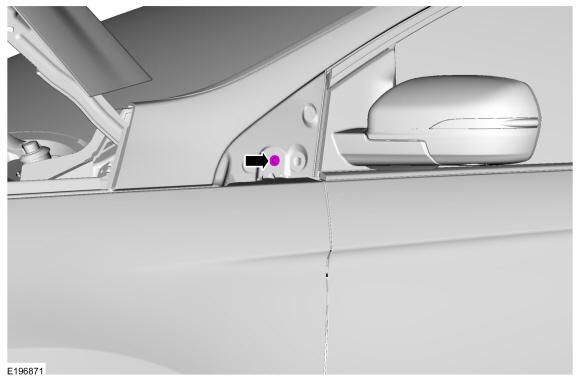

Remove the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

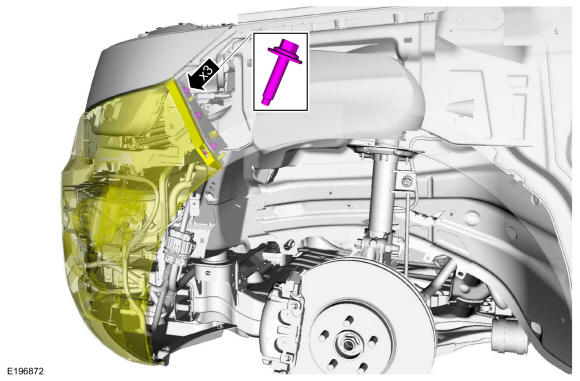

Remove the bolts and separate the front bumper cover from the fender bracket.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the headlamp assembly. Refer to: Headlamp Assembly .

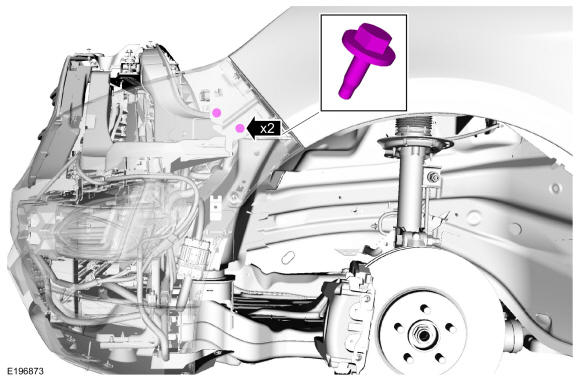

Remove the fender bolts.
Torque

: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

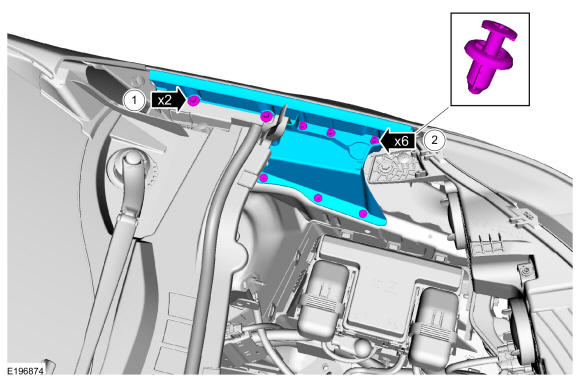

1. Remove the bolts.
  Torque

  : 80 lb.in (9 Nm)
2. Remove the retainers and the cowl filler panel.
Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

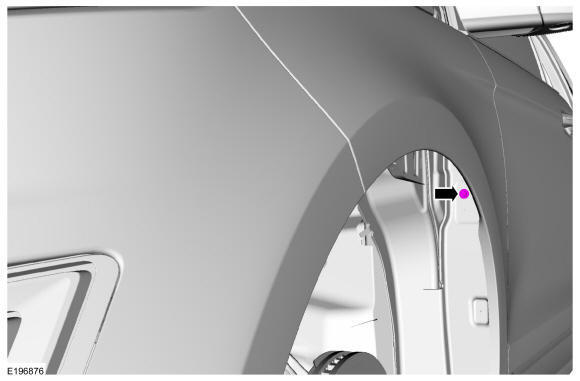

Remove the bolt.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

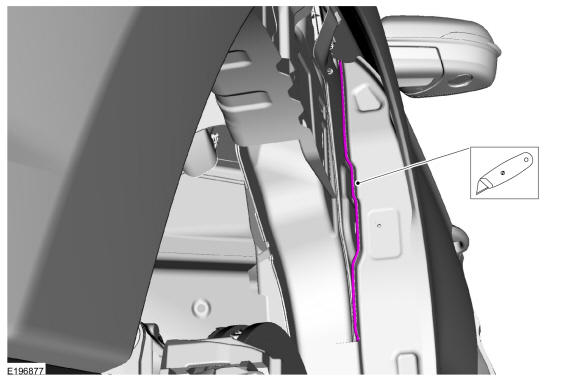

Carefully cut the foam sealant.

Courtesy of FORD MOTOR COMPANY

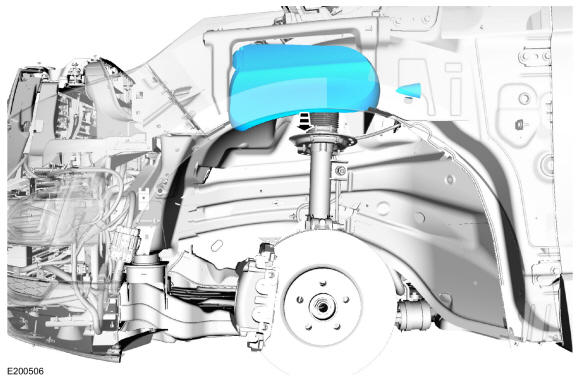

Remove the sound insulation.

Courtesy of FORD MOTOR COMPANY

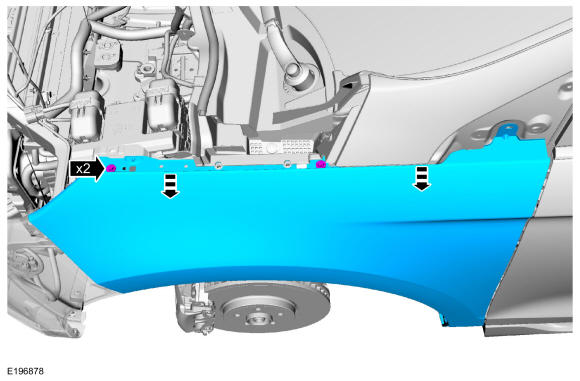

Remove the bolts and the fender.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
