Fender Splash Shield: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the wheel and tire. Refer to: Wheel and Tire .
Remove the bolts.
Torque

: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

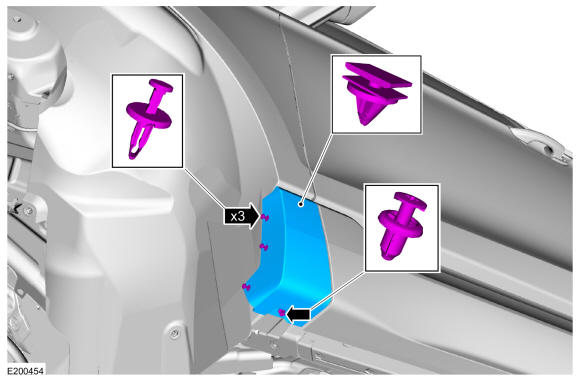

Remove the retainers and the rocker panel moulding end cap.

Courtesy of FORD MOTOR COMPANY

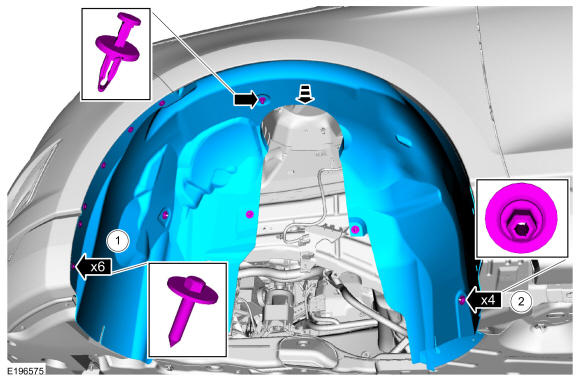

1. Remove the bolts.
  Torque

  : 13 lb.in (1.5 Nm)
2. Remove the nuts.
  Torque

  : 22 lb.in (2.5 Nm)
3. Remove the retainer and the fender splash shield.

Courtesy of FORD MOTOR COMPANY
