Cowl Panel: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the cowl panel grille. Refer to: Cowl Panel Grille .

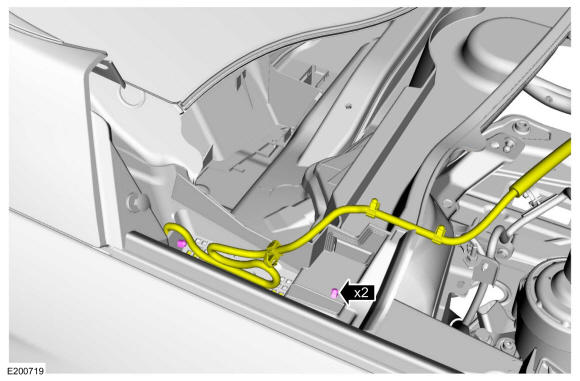

Remove the retainers and position the windshield washer hose aside.

Courtesy of FORD MOTOR COMPANY

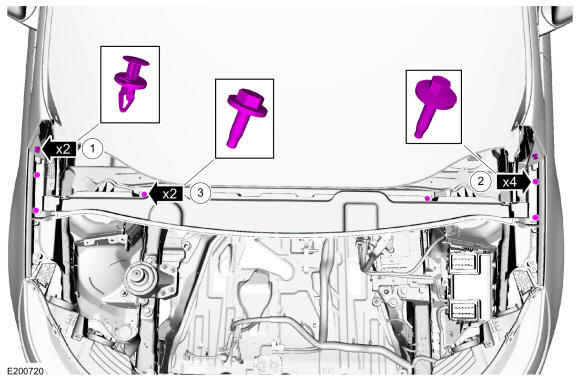

1. Remove the retainers.
2. Remove the bolts.
  Torque

  : 80 lb.in (9 Nm)
3. Remove the bolts.
  Torque

  : 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

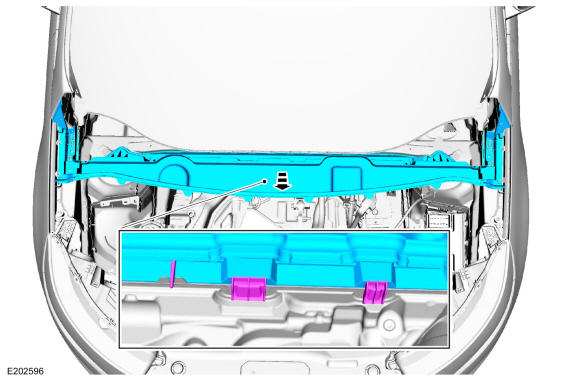

Release the tabs and remove the cowl panel.

Courtesy of FORD MOTOR COMPANY
