Active Grille Shutter: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: FRONT BUMPER COVER .

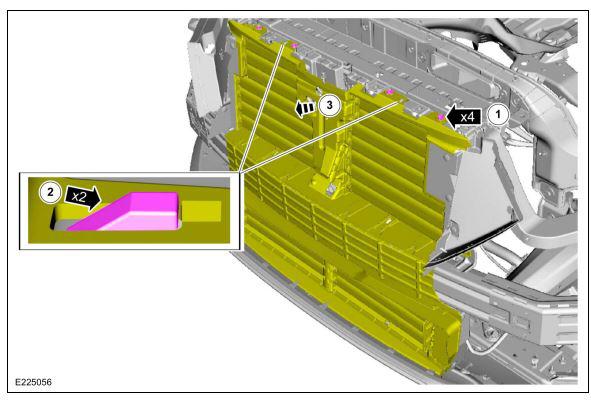

- Remove the bolts.
Torque: 44 lb.in (5 Nm)

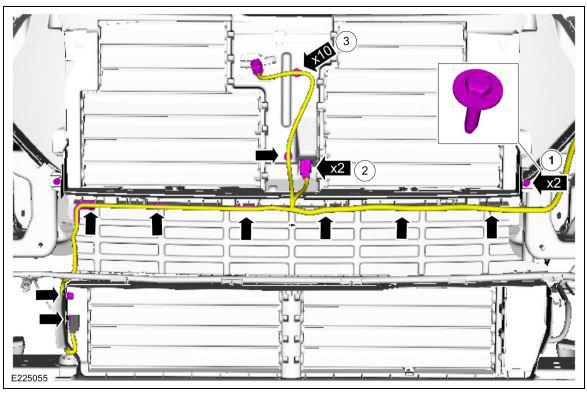

Disconnect the electrical connectors
Remove the pin-type retainers.
- Remove the pin-type retainers
Remove the screws.
- Remove the bolts. Torque: 44 lb.in (5 Nm)
Release the clips.

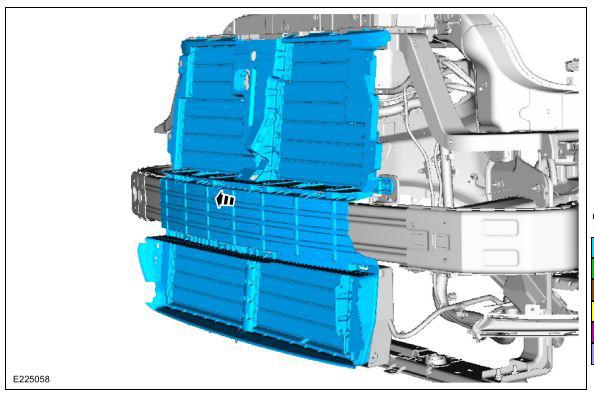

Position the active grille shutter forward.
-
NOTE: Radiator, condenser and bumper removed for clarity

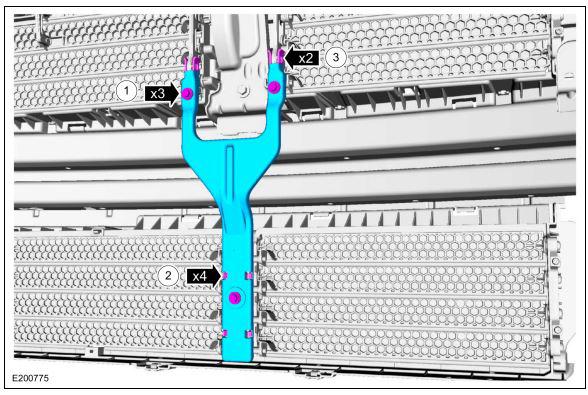

Remove the bolts.
Release the retaining tabs.

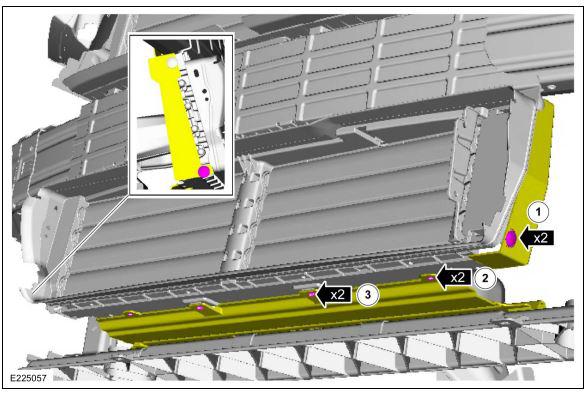

Release the retaining tabs and remove the spacer assembly.
- Remove the active grille shutter.
