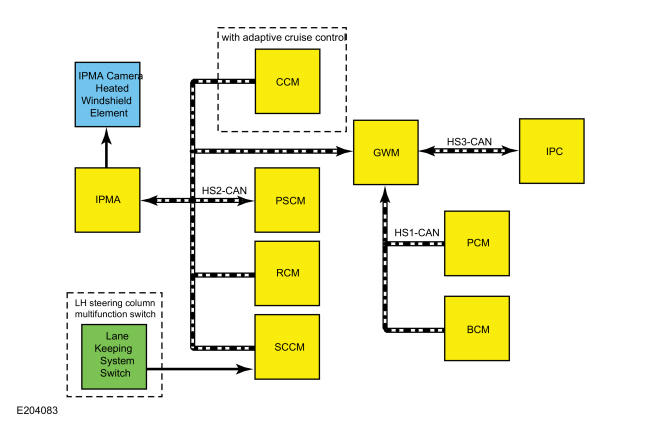

Lane Keeping Alert and Lane Keeping Aid
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

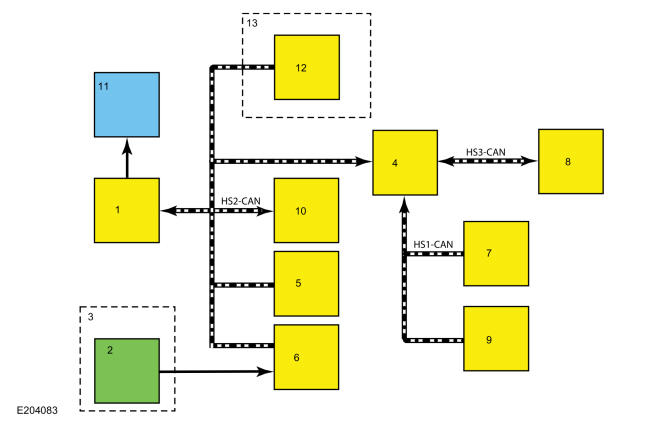

| Item |
Description |
| 1 |
IPMA |
| 2 |
Lane keeping system switch |
| 3 |
LH steering column multifunction switch |
| 4 |
GWM |
| 5 |
RCM |
| 6 |
SCCM |
| 7 |
PCM |
| 8 |
IPC |
| 9 |
BCM |
| 10 |
PSCM |
| 11 |
IPMA camera heated windshield element |
| 12 |
CCM |
| 13 |
with adaptive cruise control |
