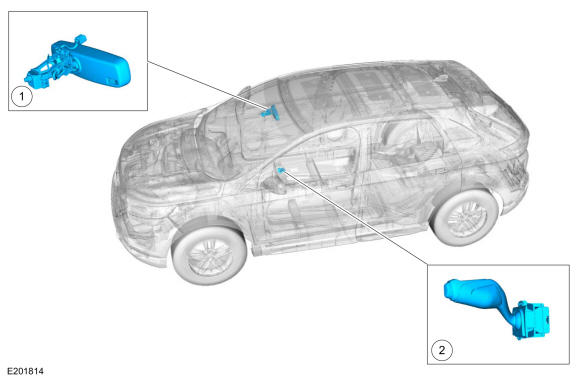

Lane Keeping System - Component Location
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
IPMA (integral to the interior rear view mirror) |
| 2 |
Lane Keeping System (LKS) switch (integral to the LH steering column multifunction switch) |
