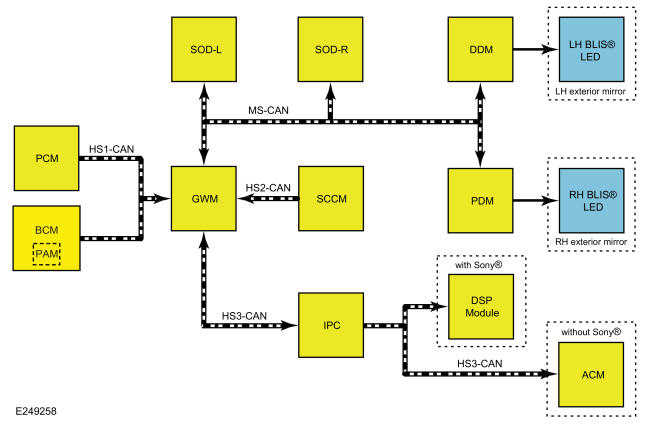

System Diagram
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

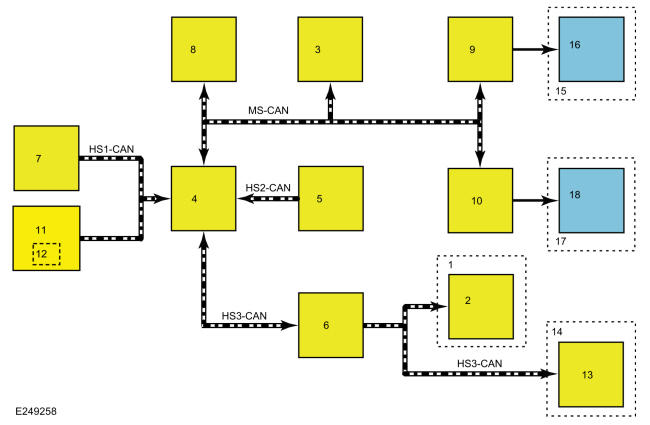

| Item |
Description |
| 1 |
With Sony® |
| 2 |
DSP module |
| 3 |
SODR |
| 4 |
GWM |
| 5 |
SCCM |
| 6 |
IPC |
| 7 |
PCM |
| 8 |
SODL |
| 9 |
DDM |
| 10 |
PDM |
| 11 |
BCM |
| 12 |
PAM |
| 13 |
ACM |
| 14 |
Without Sony® |
| 15 |
LH exterior mirror |
| 16 |
LH BLIS® LED |
| 17 |
RH exterior mirror |
| 18 |
RH BLIS® LED |
