Section 109 (Collision Warning And Collision Avoidance System)
>>
Description And Operation
>>
Collision Warning and Collision Avoidance System - System Operation and Component Description
>>
System Diagram

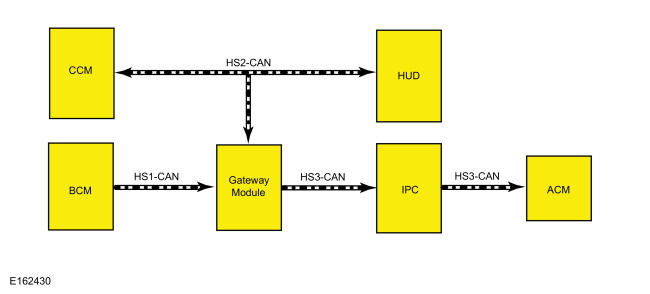

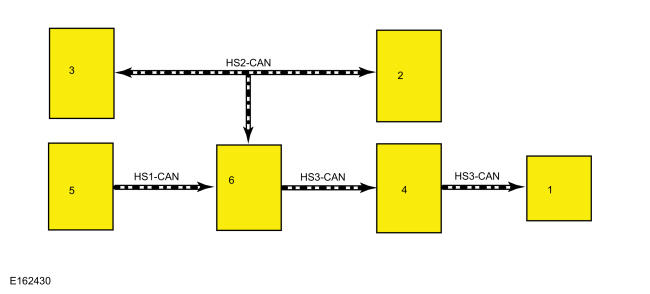

System Diagram
WARNING:
This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Item
Description
1
ACM
2
HUD module
3
CCM
4
IPC
5
BCM
6
GWM
