Cruise Control Module (CCM): Removal

Cruise control module (CCM)

1. Remove the front bumper cover. Refer to: Front Bumper Cover .

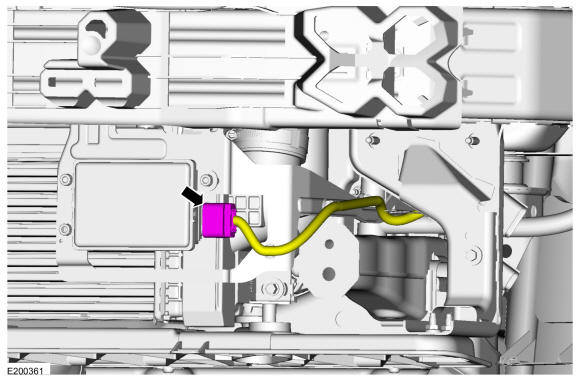

2. Disconnect the CCM electrical connector.

   Courtesy of FORD MOTOR COMPANY

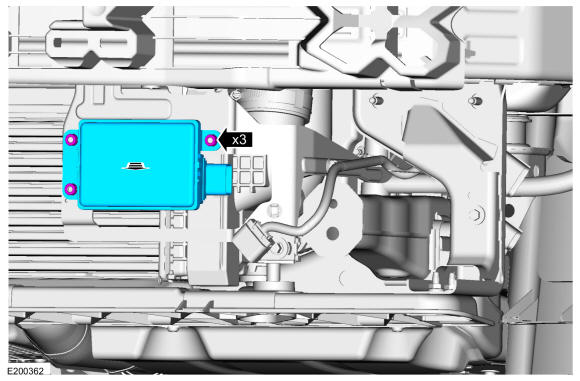

3. Separate the CCM grommets and remove the CCM.

   Courtesy of FORD MOTOR COMPANY

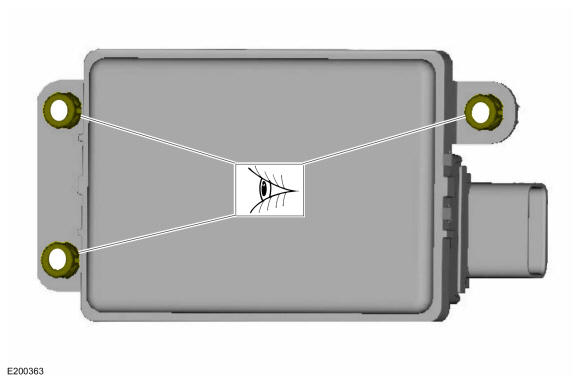

4. Inspect the grommets for damage. If damaged, install new grommets.

   Courtesy of FORD MOTOR COMPANY

   Cruise control module (CCM) bracket

5. Remove the CCM.

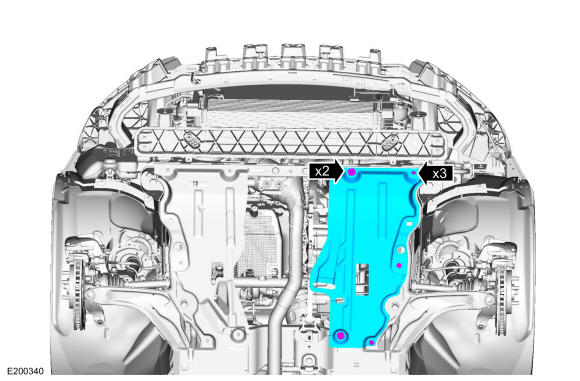

6. Remove the screws and the LH under engine shield.

   Courtesy of FORD MOTOR COMPANY

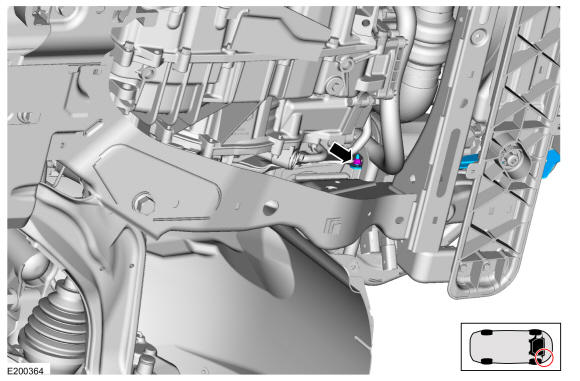

7. Remove the rear CCM bracket nut.

   Torque

   : 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

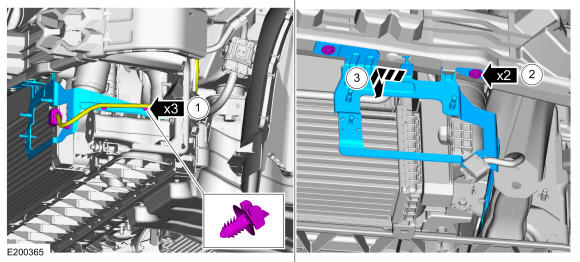

8. Remove the CCM bracket.
   1. Separate the wiring harness retainers.
   2. Remove the CCM bracket bolts.

      Torque

      : 80 lb.in (9 Nm)

   3. Slide the CCM bracket out of the front bumper slot.

Courtesy of FORD MOTOR COMPANY
