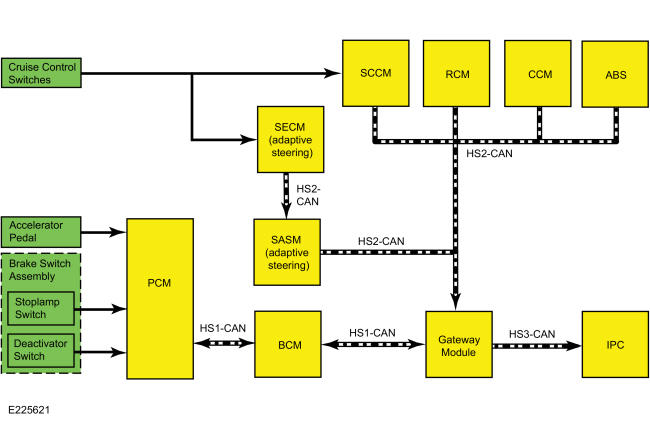

Adaptive Cruise Control
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|

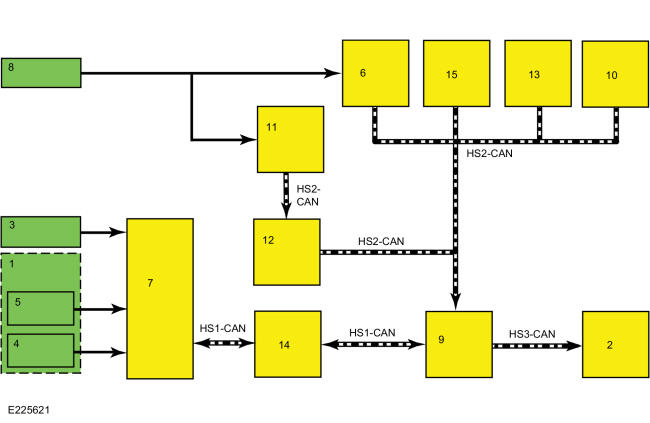

| Item |
Description |
| 1 |
Brake Switch Assembly |
| 2 |
IPC |
| 3 |
Accelerator pedal |
| 4 |
Deactivator switch |
| 5 |
Stoplamp switch |
| 6 |
SCCM |
| 7 |
PCM |
| 8 |
Cruise control switches |
| 9 |
GWM |
| 10 |
ABS module |
| 11 |
Steering Effort Control Module (SECM) (adaptive steering) |
| 12 |
SASM (adaptive steering) |
| 13 |
CCM |
| 14 |
BCM |
| 15 |
RCM |
