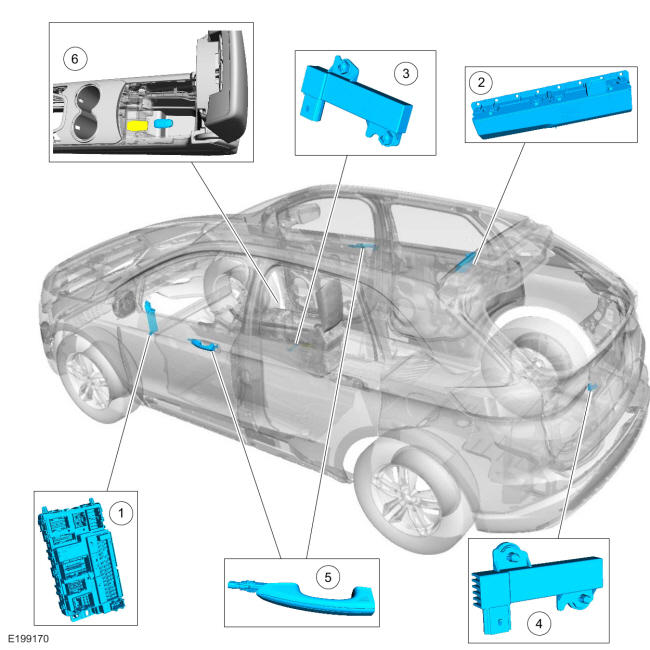

Passive Anti-Theft System (PATS) - Component Location

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	BCM
2	RTM
3	PATS center antenna
4	Keyless entry rear antenna
5	Door handle antennas (exterior front door handles)
6	Passive key backup starting location
