Trailer Module (TRM): Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

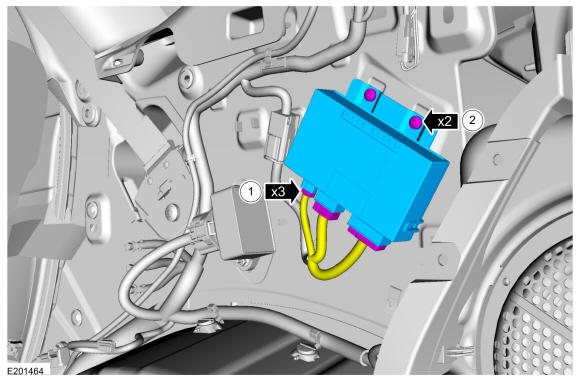

  1. Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .
  2. Remove the trailer module.

    1. Disconnect the trailer module electrical connectors.
    2. Remove the trailer module screws.

GFD282852Courtesy of FORD MOTOR COMPANY
