Reversing Lamp: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

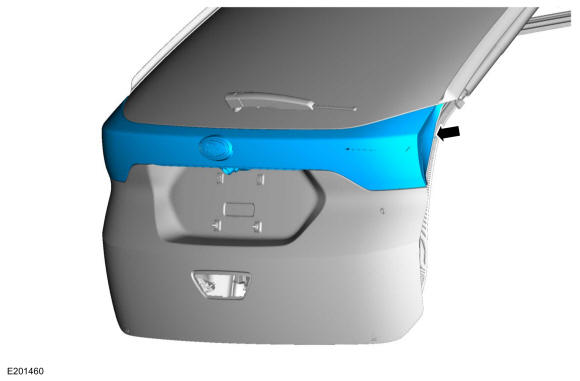

- Remove the liftgate interior trim panel. Refer to: Liftgate Trim Panel .

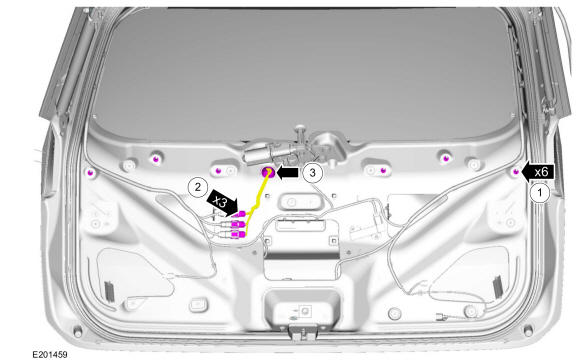

- Release the inside connections and nuts from the reversing lamp assembly.
- Remove the reversing lamp nuts.

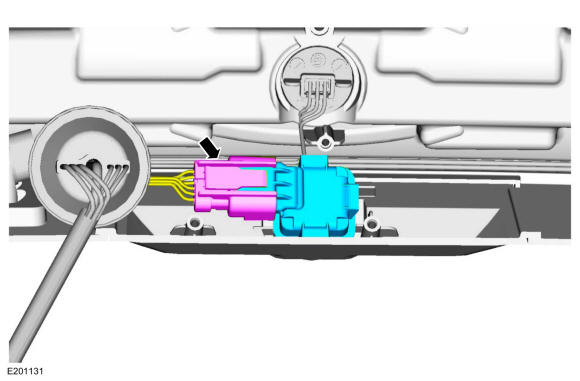

- Disconnect the electrical connectors.
- Push the grommet through the liftgate.
- Remove the reversing lamp assembly.
-
NOTE: The following steps are only required for component replacement.

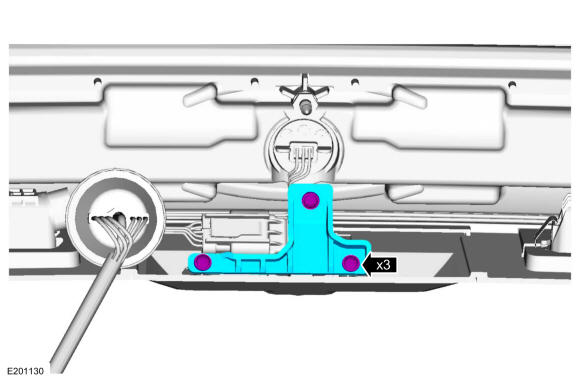

Remove the screws and the rear view camera bracket.
- Disconnect and remove the rear view camera.
