Reversing Lamp: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

If removed, install and connect the rear view camera.

Courtesy of FORD MOTOR COMPANY
If removed, install the rear view camera bracket and the screws.

Courtesy of FORD MOTOR COMPANY
Install the reversing lamp assembly and fully seat the 2-way grommets.

Courtesy of FORD MOTOR COMPANY

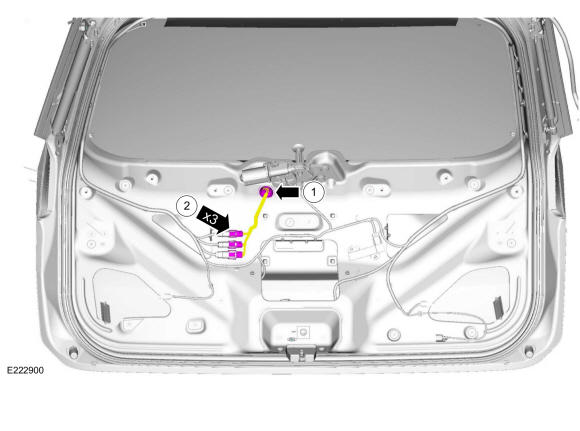

Connect the reversing lamp assembly electrical connectors.
1. Install the grommet in the liftgate.
2. Connect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

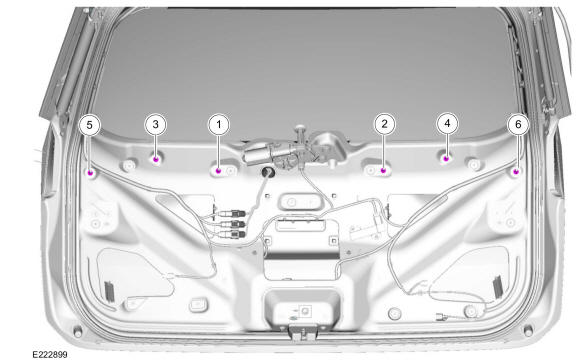

NOTE: Failure to follow the tightening sequence may result in component damage.

Install and tighten the nuts in the sequence shown.

Torque

: 28 lb.in (3.2 Nm)

Fig 1: Reversing Lamp Assembly Bolt Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the liftgate interior trim panel. Refer to: Liftgate Trim Panel .
