Rear Lamp Assembly: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure can be used for all locations of the component.

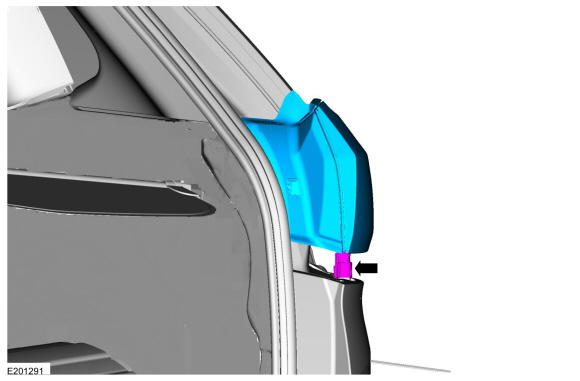

- Remove the screw and position the rear lamp assembly.
 Courtesy of FORD MOTOR COMPANY
|

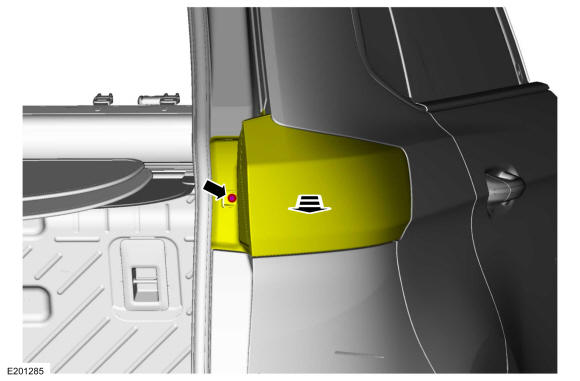

- Disconnect the electrical connector and remove the rear lamp.
 Courtesy of FORD MOTOR COMPANY
|
