High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler. Refer to: Rear Spoiler .

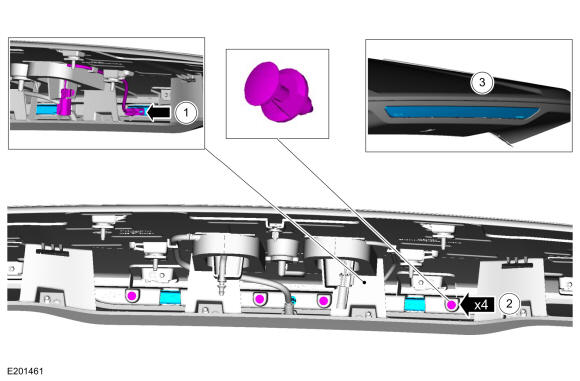

  2. Remove the high mounted stoplamp.

    1. Disconnect the high mounted stoplamp electrical connector.
    2. Remove the push pins.
    3. Separate the high mounted stoplamp from the rear spoiler.

GFD282839Courtesy of FORD MOTOR COMPANY
