Headlamp Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

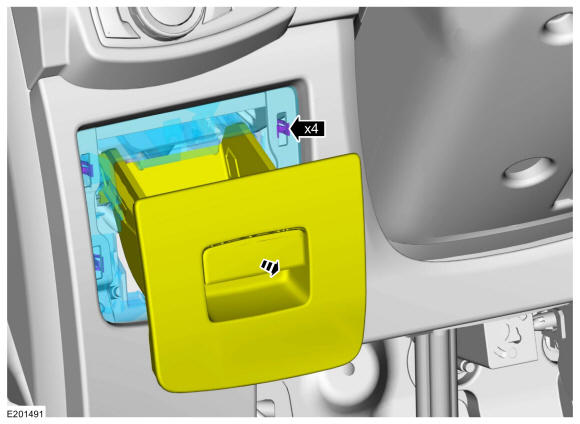

  1. Open the stowage box and remove the retainers and the stowage box assembly.
    GFD282835Courtesy of FORD MOTOR COMPANY

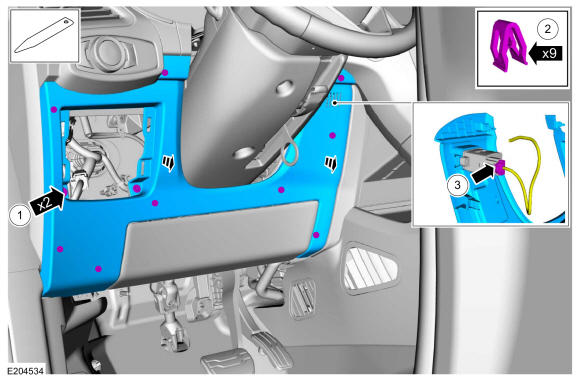

  2. Release the clips and remove the lower steering column opening trim panel.

    1. Remove the bolts.

      Torque

      : 22 lb.in (2.5 Nm)

    2. Release the clips and remove the steering column opening trim panel.
    3. Disconnect the electrical connector.

    GFD282836Courtesy of FORD MOTOR COMPANY

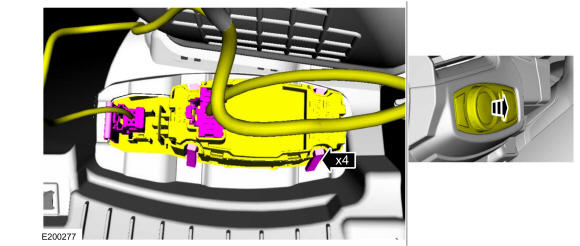

  3. Release the tabs and position the headlamp switch.
    GFD282837Courtesy of FORD MOTOR COMPANY

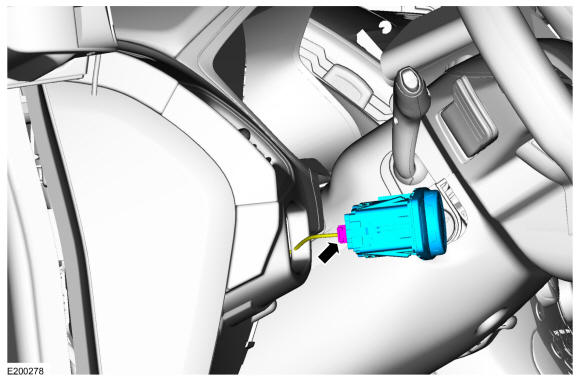

  4. Disconnect and remove the headlamp switch.
GFD282838Courtesy of FORD MOTOR COMPANY
