Headlamp Assembly: Installation

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

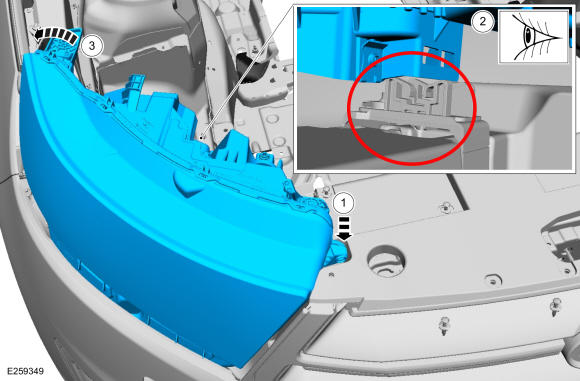

1. Position the front of the headlamp assembly into the front fascia.
2. Check the alignment of the lower headlamp retainer.
3. Rotate the rear corner of the headlamp assembly into the fender.
Courtesy of FORD MOTOR COMPANY
1. Install the scrivet.
2. Install the rear headlamp mounting bolt.
  Torque

  : 42 lb.in (4.8 Nm)
3. Install the front mounting bolt
  Torque

  : 42 lb.in (4.8 Nm)
4. Connect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only required if installing a new headlamp assembly.

Adjust the headlamp assemblies. Refer to: Headlamp Adjustment .
