Front Fog Lamp: Removal
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
This procedure can be used for all locations of the component.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

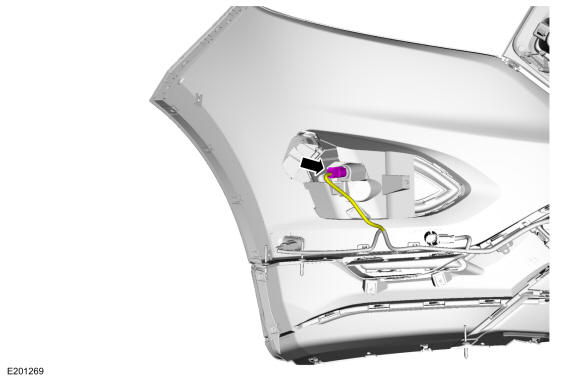

- Disconnect the fog lamp electrical connector.

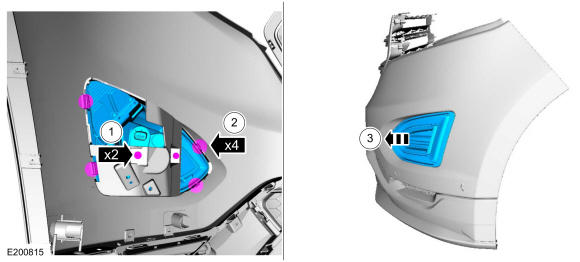

- Remove the fog lamp.
- Remove the screws.
- Release the tabs.
- Separate the fog lamp bezel from the upper front bumper cover.
