Reversing Lamps
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

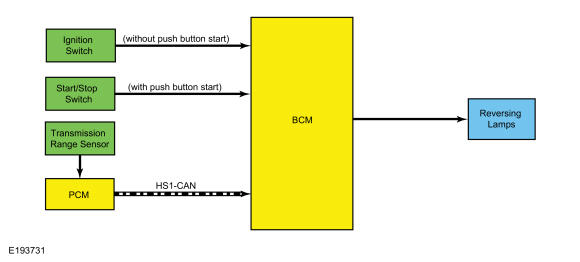

System Diagram
| Item | Description |
|---|---|
| 1 | Transmission range sensor |
| 2 | PCM |
| 3 | HS-CAN1 |
| 4 | BCM |
| 5 | Reversing lamps |
| 6 | Ignition switch |
| 7 | Start/Stop switch |
| 8 | (without push button start) |
| 9 | (with push button start) |
Network Message Chart
BCM Network Input Messages
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| Gear position | PCM | Indicates the transmission is in reverse gear to the BCM. When the transmission is in REVERSE and the ignition in RUN, the BCM provides voltage to the reversing lamps. |
Reversing Lamps
When the transmission is in REVERSE, the PCM sends a message over the HS-CAN1 to the BCM indicating the transmission is in REVERSE. The BCM provides voltage to the reversing lamps when it receives the message that the transmission is in REVERSE and the ignition is in RUN.
The BCM also provides Field Effect Transistor (FET) protection of the reversing lamps output circuit. When an excessive current draw is detected, the BCM disables the affected reversing lamps circuit driver. Refer to: Module Controlled Functions - System Operation and Component Description .
