Connector End View (C9221) - MICROPHONE

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9221	MICROPHONE	BK	14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	VMM23 (BN-VT)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL +	9U5T-14474-LA
3	RMM23 (WH-GN)	22	CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL -	9U5T-14474-LA

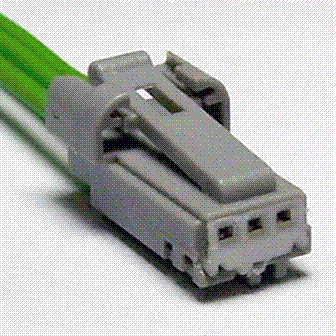

Available Pigtail Kits

Pigtail Kit Part Number WPT-1182

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-AFA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Microphone
