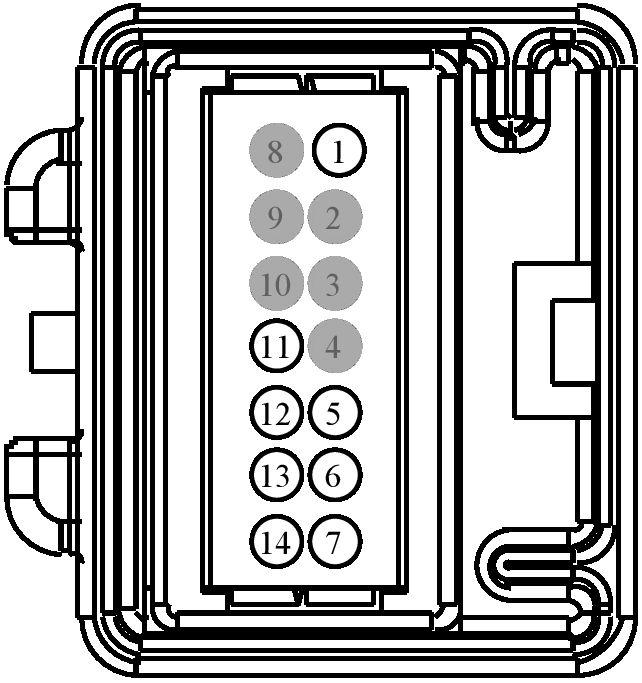

Connector End View (C9012) - AUTO-DIMMING INTERIOR MIRROR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9012 |
AUTO-DIMMING INTERIOR MIRROR |
17C712 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14421-BA |
EU2Z-14421-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBP36 (BU-BN) |
22 |
FUSE - 36 OR CIRCUIT BREAKER |
9U5T-14421-BA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
LRD12 (BU-GY) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR + |
9U5T-14421-BA |
| 6 |
RRD12 (BN) |
22 |
CTRL MOD. - ELECTROCHROMIC MIRROR - |
9U5T-14421-BA |
| 7 |
GD383 (BK-WH) |
22 |
GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
9U5T-14421-BA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CRD19 (VT-WH) |
22 |
MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE + |
9U5T-14421-BA |
| 12 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
9U5T-14421-BA |
| 13 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
9U5T-14421-BA |
| 14 |
RRD19 (BN-VT) |
22 |
MIRROR - ELECTROCHROMIC REAR VIEW # EXTERIOR MIRROR ACTUATE - |
9U5T-14421-BA |
