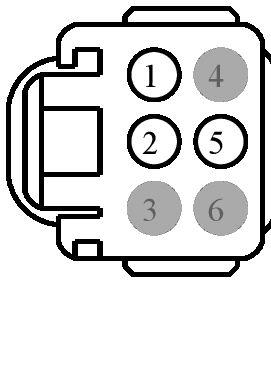

Connector End View (C4512) - SECOND ROW SEAT CONTROL SWITCH LH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4512	SECOND ROW SEAT CONTROL SWITCH LH	GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BAA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPSD6 (VT-GY)	20	RELAY - 2ND ROW SEAT FOLD RIGHT	97BG-14474-BAA
2	CPS58 (WH-BN)	20	RELAY - 2ND ROW SEAT RELEASE ENABLE	97BG-14474-BAA
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CPSD2 (VT-GN)	20	RELAY - 2ND ROW SEAT FOLD LEFT	97BG-14474-BAA
6	*	*	Not Used	N/A

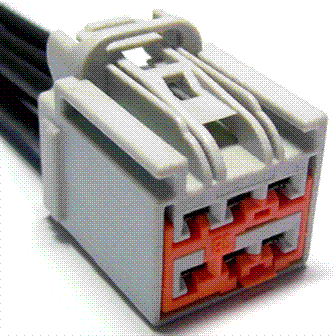

Available Pigtail Kits

Pigtail Kit Part Number WPT-1019

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-XVB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Junction Box - Relay
Switch - Adjustable Pedal
Switch - Moon Roof/Sun Roof
Switch - Power Window - Driver
Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
Switch - Power Window - Quarter Glass
Switch - Power Window - RH - Rear
Switch - Seat Passenger Side (2nd Row)
Switch - Third Row Power Folding Seat
