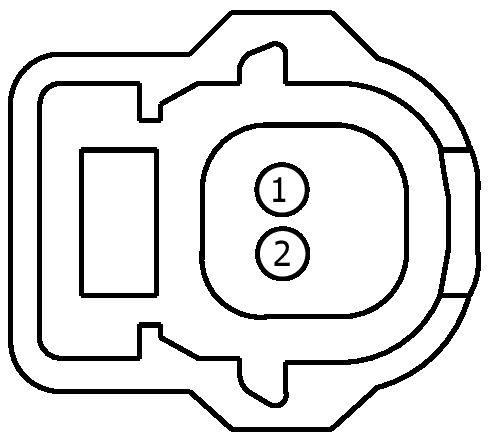

Connector End View (C4511) - RH C-PILLAR SIDE IMPACT SENSOR

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4511	RH C-PILLAR SIDE IMPACT SENSOR	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR220 (VT-OG)	22	SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE	EU5T-14474-AA
2	RR134 (BN-BU)	22	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE -	EU5T-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Crash (Engine Compartment)
Sensor - Seat Track Position
Sensor - Side Impact
Solenoid - Down Shift
Solenoid - Torque Control Coupling
Valve - Heated PCV
Valve - Heater Core Shut Off
Valve - Transmission Fluid Warmer
