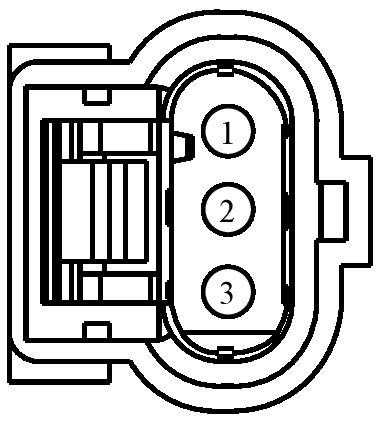

Connector End View (C4401) - HANDS FREE LIFTGATE ACTUATION MODULE
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4401 | HANDS FREE LIFTGATE ACTUATION MODULE | BK | 15K868 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-NA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPK52 (VT-WH) | 20 | CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT | AU5T-14474-NA | ||||
| 2 | SBP10 (YE-RD) | 20 | FUSE - 10 OR CIRCUIT BREAKER | AU5T-14474-NA | ||||
| 3 | GD347 (BK-VT) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT | AU5T-14474-NA | ||||

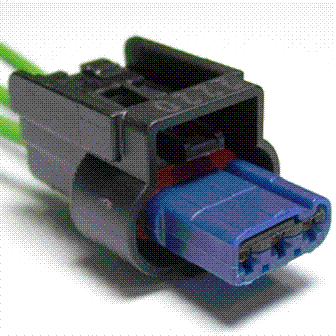

Available Pigtail Kits
Pigtail Kit Part Number WPT-1530
Service Part Number:
BU2Z-14S411-ARB
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Lamp - Front Turn
- Lamp - Park/Turn
- Module - Handsfree Liftgate Entry
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Pump - Auxiliary Heater
- Pump - Coolant Module
- Pump - Transfer Case Coolant
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Crankcase Pressure
- Sensor - Fuel Low Pressure
- Sensor - Particulate Delta Pressure
- Sensor - Particulate Filter Delta Pressure
- Solenoid - Wastegate Vacuum
- Switch - Deck Lid / Hatch Release
Pigtail Kit Part Number WPT-1202
Service Part Number:
BU2Z-14S411-ARA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
- Coil - Ignition
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
