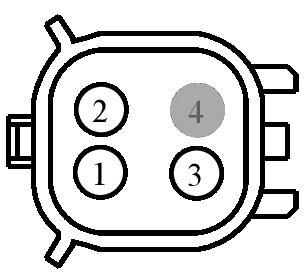

Connector End View (C4352) - REVERSING LAMP
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4352 | REVERSING LAMP | BK | 17N400 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CLS28 (BU-WH) | 22 | CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) | BU5T-14421-HA | ||||
| 2 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | BU5T-14421-HA | ||||
| 3 | GD312 (BK) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT | BU5T-14421-HA | ||||
| 4 | * | * | Not Used | N/A | ||||

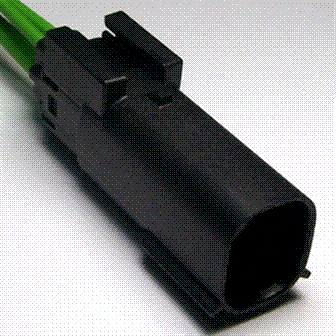

Available Pigtail Kits
Pigtail Kit Part Number WPT-1288
Service Part Number:
CU2Z-14S411-ZA
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570
Service Part Number:
CU2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - RH - Front
- Connector - Inline
- Lamp - Fog/Driving
- Lamp - Liftgate Applique
- Sensor - Catalyst Monitor
- Sensor - O2 (HEGO/ EGO)
- Speaker - Siren
- Switch - Seat Belt Warning
