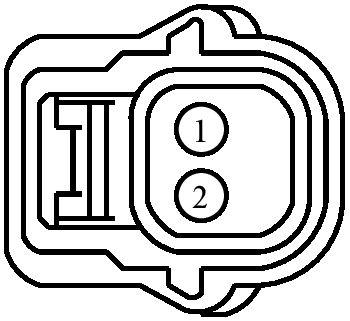

Connector End View (C4347) - ACTIVE TORQUE CONTROL COUPLING (ATCC) SOLENOID

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4347	ACTIVE TORQUE CONTROL COUPLING (ATCC) SOLENOID	2C054			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCF21 (VT-WH)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID +	9U5T-14474-MA
2	RCF21 (WH-VT)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTELLIGENT TORQUE CONTROL COUPLING SOLENOID -	9U5T-14474-MA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Sensor - Crash (Engine Compartment)
Sensor - Seat Track Position
Sensor - Side Impact
Solenoid - Down Shift
Solenoid - Torque Control Coupling
Valve - Heated PCV
Valve - Heater Core Shut Off
Valve - Transmission Fluid Warmer
