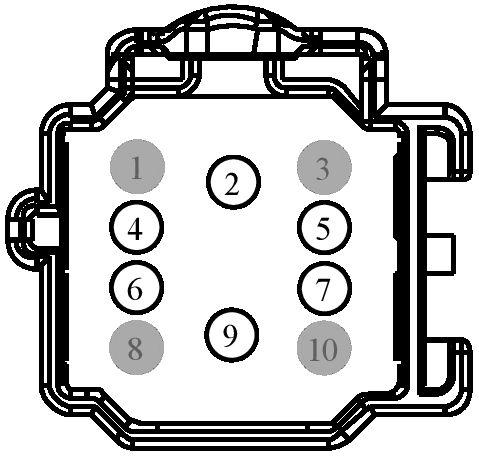

Connector End View (C4332) - POWER LIFTGATE MOTOR
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4332 |
POWER LIFTGATE MOTOR |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| DU5T-14421-FA |
EU2Z-14421-BA |
0.64 |
| 8U5T-14421-CA |
EU2Z-14421-DA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CPR57 (GN-WH) |
14 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # OPEN (IF POSITIVE) |
8U5T-14421-CA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
CPR55 (GN-BU) |
22 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR POWER |
DU5T-14421-FA |
| 5 |
RPR55 (WH-BU) |
22 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR RETURN |
DU5T-14421-FA |
| 6 |
VPR53 (BU-WH) |
22 |
SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 1 (OPEN IF LEAD) |
DU5T-14421-FA |
| 7 |
VPR54 (BU-BN) |
22 |
SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 2 (CLOSE IF LEAD) |
DU5T-14421-FA |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
CPR58 (GN-OG) |
14 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # CLOSE (IF POSITIVE) |
8U5T-14421-CA |
| 10 |
* |
* |
Not Used |
N/A |
