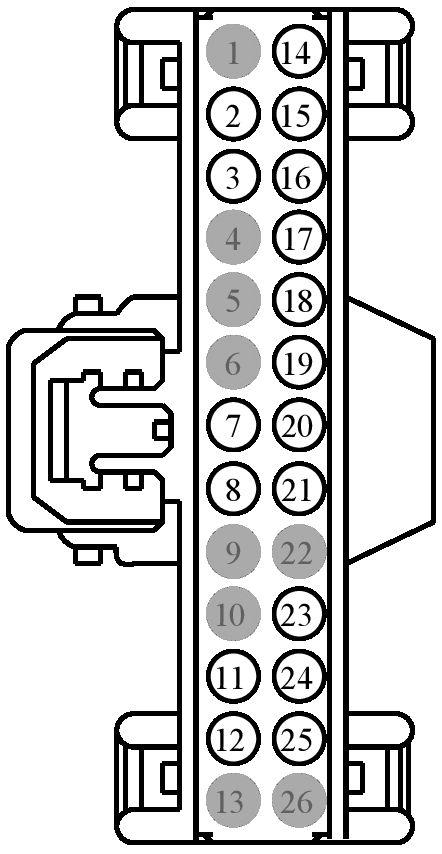

Connector End View (C4174B) - REAR GATE TRUNK MODULE (RGTM)
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4174B |
REAR GATE TRUNK MODULE (RGTM) |
BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 8U5T-14474-BA |
DU2Z-14474-CA |
0.64 |
| DU5T-14474-EAA |
DU2Z-14474-CA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CPR67 (VT) |
22 |
LATCH - LIFTGATE # SECTOR GEAR SWITCH 1 |
8U5T-14474-BA |
| 3 |
CPR63 (GY-YE) |
22 |
SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE |
8U5T-14474-BA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
VPR53 (BU-WH) |
22 |
SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 1 (OPEN IF LEAD) |
8U5T-14474-BA |
| 8 |
VPR54 (BU-BN) |
22 |
SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 2 (CLOSE IF LEAD) |
8U5T-14474-BA |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CPR89 (BN-BU) |
22 |
SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE #2 (REAR) |
8U5T-14474-BA |
| 12 |
CPR52 (YE-VT) |
22 |
SWITCH - POWER LIFTGATE # OBSTACLE DETECT - LEFT |
8U5T-14474-BA |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
CPR51 (YE-OG) |
22 |
SWITCH - POWER LIFTGATE # OBSTACLE DETECT - RIGHT |
8U5T-14474-BA |
| 15 |
CPL44 (YE-OG) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
8U5T-14474-BA |
| 16 |
CPR66 (GY-YE) |
22 |
LATCH - LIFTGATE # RATCHET SWITCH |
8U5T-14474-BA |
| 17 |
CPR65 (BU-GN) |
22 |
LATCH - LIFTGATE # LATCH SWITCH FULL |
8U5T-14474-BA |
| 18 |
CPR64 (VT-OG) |
22 |
LATCH - LIFTGATE # LATCH SWITCH HALF |
8U5T-14474-BA |
| 19 |
CPR55 (GN-BU) |
22 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR POWER |
8U5T-14474-BA |
| 20 |
RPR55 (WH-BU) |
22 |
CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR RETURN |
8U5T-14474-BA |
| 21 |
RPR52 (VT-GY) |
22 |
SWITCH - POWER LIFTGATE # OBSTACLE DETECT - |
8U5T-14474-BA |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
VDB07 (VT-OG) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
DU5T-14474-EAA |
| 24 |
VDB06 (GY-OG) |
26 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
DU5T-14474-EAA |
| 25 |
CPL45 (BN) |
22 |
SWITCH - LIFTGATE/DECKLID RELEASE |
8U5T-14474-BA |
| 26 |
* |
* |
Not Used |
N/A |
