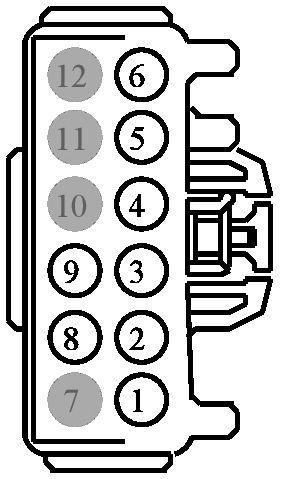

Connector End View (C4174A) - REAR GATE TRUNK MODULE (RGTM)

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4174A	REAR GATE TRUNK MODULE (RGTM)	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BCA	DU2Z-14474-EA	2.8
97BG-14474-BAA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD347 (BK-VT)	12	GROUND - PILLAR C OR QUARTER PANEL LEFT	97BG-14474-BCA
2	CPR61 (BN)	20	CTRL MOD. - POWER LIFTGATE # CINCH +	97BG-14474-BAA
3	RPR61 (YE-VT)	20	CTRL MOD. - POWER LIFTGATE # CINCH -	97BG-14474-BAA
4	SBB76 (GN-RD)	12	FUSE - 76 OR CIRCUIT BREAKER	97BG-14474-BCA
5	CPR57 (GN-WH)	14	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # OPEN (IF POSITIVE)	97BG-14474-BCA
6	CPR58 (GN-OG)	14	CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # CLOSE (IF POSITIVE)	97BG-14474-BCA
7	*	*	Not Used	N/A
8	CPR60 (WH-VT)	20	CTRL MOD. - POWER LIFTGATE # UNLATCH (-)	97BG-14474-BAA
9	SBP10 (YE-RD)	22	FUSE - 10 OR CIRCUIT BREAKER	97BG-14474-BAA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A

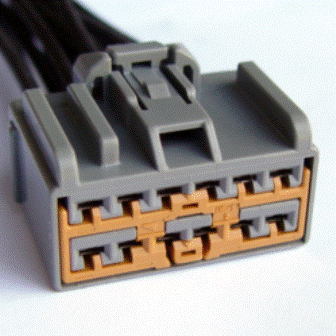

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Liftgate
Switch - Headlamp
Switch - Seat (driver)
Switch - Seat (passenger)
