Connector End View (C4173) - LIFTGATE ANTI-PINCH SWITCH RH

WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4173	LIFTGATE ANTI-PINCH SWITCH RH	17N400			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14421-FA	EU2Z-14421-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPR51 (YE-OG)	22	SWITCH - POWER LIFTGATE # OBSTACLE DETECT - RIGHT	DU5T-14421-FA
2	RPR52 (VT-GY)	22	SWITCH - POWER LIFTGATE # OBSTACLE DETECT -	DU5T-14421-FA

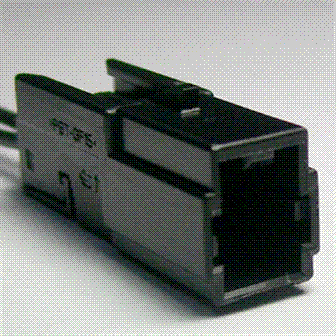

Available Pigtail Kits

Pigtail Kit Part Number WPT-1477

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-MA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Sensor - A/C Evaporator Temperature
Sensor - Liftgate Obstacle
