Connector End View (C3802) - SECOND ROW SAFETY BELT LH
WARNING: This page is about a different car, the 2018 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3802 | SECOND ROW SAFETY BELT LH | 14A699 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| NULL | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR180 (YE) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER + | NULL | ||||
| 2 | RR180 (BN-GN) | 20 | CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER - | NULL | ||||

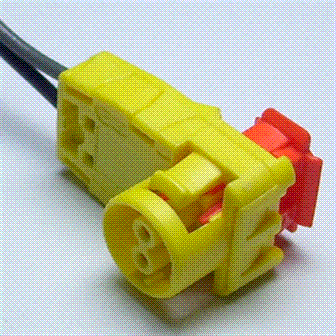

Available Pigtail Kits
Pigtail Kit Part Number WPT-1467
Service Part Number:
BU2Z-14S411-BKB
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
Pigtail Kit Part Number WPT-1227
Service Part Number:
BU2Z-14S411-BKA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
